Features

Power Saving

Up to 60%

Gold Fin

More resistant to corrosion

Self Cleaning

Keep internal side dry, prevent bacteria

Warranty

5 Years (indoor and outdoor unit)

Features

Gold Fin

More resistant to corrosion

Warranty

5 Years (indoor and outdoor unit)

Power Saving

Up to 40%

Self Cleaning

Keep internal side dry, prevent bacteria

Features

Self Cleaning

Keep internal side dry, prevent bacteria

Warranty

5 Years (indoor and outdoor unit)

Great Performance

Air force up to a long distance

Gold Fin

More resistant to corrosion

Features

Gold Fin

More resistant to corrosion

Great Performance

Air force up to a long distance

Self Cleaning

Keep internal side dry, prevent bacteria

Warranty

5 Years (indoor and outdoor unit)

Features

Great Performance

Air force up to a long distance

Gold Fin

More resistant to corrosion

Self Cleaning

Keep internal side dry, prevent bacteria

Warranty

2 Years (indoor and outdoor unit)

Features

Great Performance

Air force up to a long distance

Gold Fin

More resistant to corrosion

Self Cleaning

Keep internal side dry, prevent bacteria

Warranty

2 Years (indoor and outdoor unit)

Features

Great Performance

Air force up to a long distance

Gold Fin

More resistant to corrosion

Self Cleaning

Keep internal side dry, prevent bacteria

Warranty

2 Years (indoor and outdoor unit)

Features

Great Performance

Air force up to a long distance

Gold Fin

More resistant to corrosion

Self Cleaning

Keep internal side dry, prevent bacteria

Warranty

5 Years (indoor and outdoor unit)

Features

Warranty

5 Years (indoor and outdoor unit)

Great Performance

Air force up to a long distance

Gold Fin

More resistant to corrosion

Self Cleaning

Keep internal side dry, prevent bacteria

Features

Great Performance

Air force up to a long distance

Gold Fin

More resistant to corrosion

Self Cleaning

Keep internal side dry, prevent bacteria

Warranty

5 Years (indoor and outdoor unit)

Features

Great Performance

Air force up to a long distance

Gold Fin

More resistant to corrosion

Self Cleaning

Keep internal side dry, prevent bacteria

Warranty

5 Years (indoor and outdoor unit)

Features

Great Performance

Air force up to a long distance

Gold Fin

More resistant to corrosion

Self Cleaning

Keep internal side dry, prevent bacteria

Warranty

5 Years (indoor and outdoor unit)

Features

Great Performance

Air force up to a long distance

Gold Fin

More resistant to corrosion

Self Cleaning

Keep internal side dry, prevent bacteria

Warranty

5 Years (indoor and outdoor unit)

Features

Gold Fin

More resistant to corrosion

Warranty

5 Years (indoor and outdoor unit)

Self Cleaning

Keep internal side dry, prevent bacteria

Great Performance

Air force up to a long distance

Rated Capacity, Cooling	11000 BTU
Rated Capacity, Heating	12500 BTU
Rated Running Current, Cooling	0.8-6.7 A
Rated Running Current, Heating	1-5.8 A
Max. Input Power	1600 W
Max. Input Current	7.5 A
EER Cooling	8.5 W/W
COP Heating	4.6 W/W
Power Supply Source V/Ph/Hz	220～240V-1-50Hz
Refrigerant	R410A
Refrigerant Charged	1300 g
Max. Discharge Pressure	4.15 Mpa
Max. Suction Pressure	1.15 Mpa
Air Flow Volume	950 m3/h
Indoor Unit Noise Power	43 dB（A)
Outdoor Unit Noise Power	52 dB（A)
Indoor Unit Weight （Net)	12 Kg

Outdoor Unit Weight (Net)	31 Kg
Indoor Evaporator Bend	3
Indoor Evaporator Row	2
Indoor Evaporator Pipe Diameter	7*0.24 mm
Indoor Fan Motor	D-310-30-8
Indoor Net Dimension	970315235 mm
Indoor Packing Dimension	1047385317 mm
Liquid Valve	Φ6.35 mm
Gas Valve	Φ9.52 mm
Outdoor Compressor Brand	GMCC
Outdoor Compressor Model	ASN108
Outdoor Fan Motor	D-40-8
Outdoor Condenser Pipe Diameter	7*0.24 mm
Outdoor Condenser Row	2
Outdoor Net Dimension	802535298 mm
Outdoor Packing Dimension	920400620 mm
Container Loading 40HC	190 Units

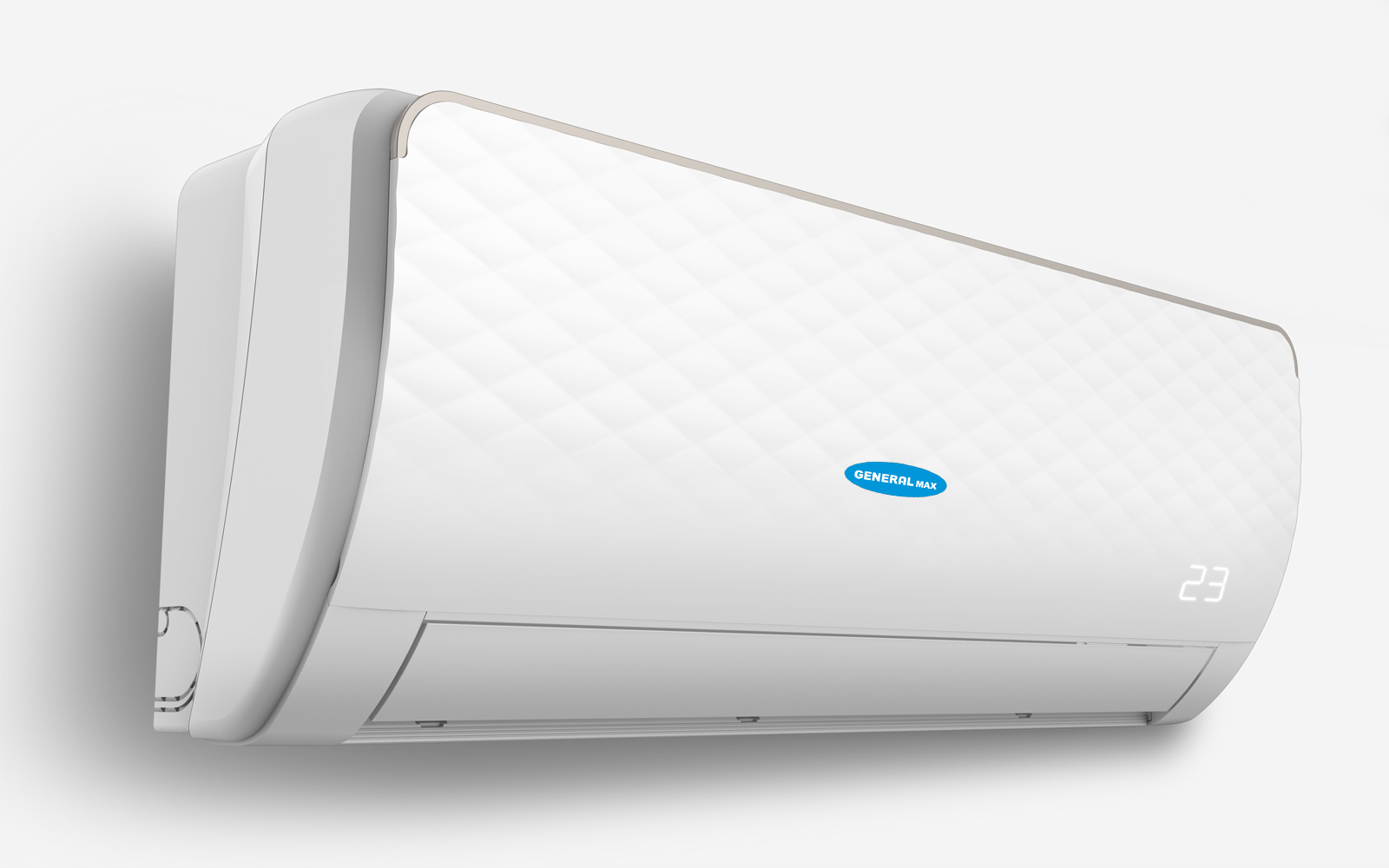

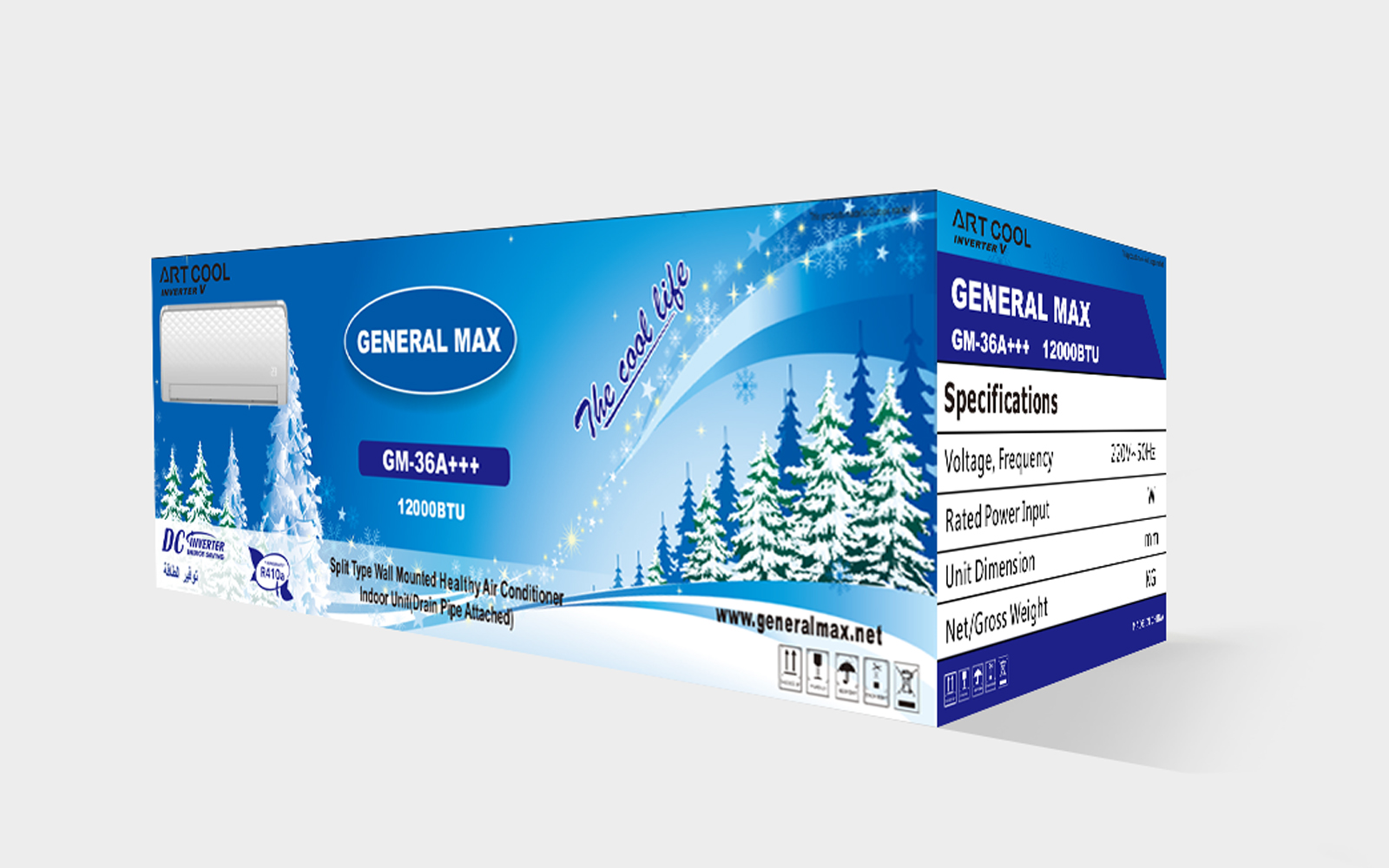

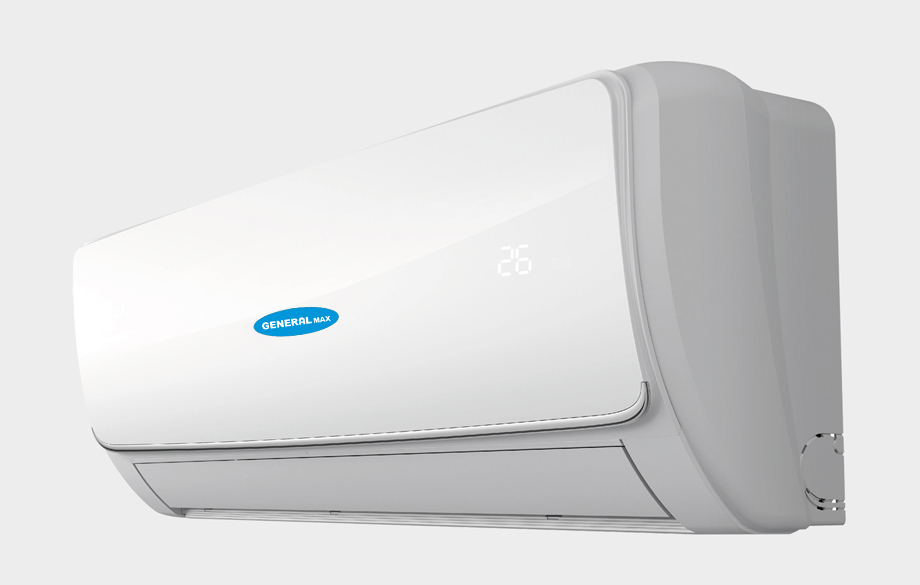

Inverter A++

Rated Capacity, Cooling	12000 BTU
Rated Capacity, Heating	13000 BTU
Rated Running Current, Cooling	0.6-8.0 A
Rated Running Current, Heating	1.5-7.0 A
Max. Input Power	1900 W
Max. Input Current	9.5 A
EER Cooling	5.9 W/W
COP Heating	3.87 W/W
Power Supply Source V/Hz	220~240V/50Hz
Refrigerant	R410A
Refrigerant Charged	800 g
Max. Discharge Pressure	4.15 Mpa
Max. Suction Pressure	1.15 Mpa
Air Flow Volume	700 m3/h
Indoor Unit Noise Power	41 dB（A)
Outdoor Unit Noise Power	52 dB（A)
Indoor Unit Weight （Net)	10 Kg

Outdoor Unit Weight (Net)	29 Kg
Indoor Evaporator Bend	3
Indoor Evaporator Row	2
Indoor Evaporator Pipe Diameter	7*0.24 mm
Indoor Fan Motor	YYK18-4B
Indoor Net Dimension	800300198 mm
Indoor Packing Dimension	870370282 mm
Liquid Valve	Φ6.35 mm
Gas Valve	Φ9.52 mm
Outdoor Compressor Brand	GMCC
Outdoor Compressor Model	ASN108
Outdoor Fan Motor	D-24-8
Outdoor Condenser Pipe Diameter	7*0.24 mm
Outdoor Condenser Row	1
Outdoor Net Dimension	720540260 mm
Outdoor Packing Dimension	850370620 mm
Container Loading 40HC	240 Units

Rated Capacity, Cooling	18000 BTU
Rated Capacity, Heating	19000 BTU
Rated Running Current, Cooling	1.4-8.8 A
Rated Running Current, Heating	1.8-9.1 A
Max. Input Power	2600 W
Max. Input Current	12 A
EER Cooling	5.8 W/W
COP Heating	3.8 W/W
Power Supply Source V/Hz	220~240V/50Hz
Refrigerant	R410A
Refrigerant Charged	1400 g
Max. Discharge Pressure	4.15 Mpa
Max. Suction Pressure	1.15 Mpa
Air Flow Volume	1000 m3/h
Indoor Unit Noise Power	45 dB（A)
Outdoor Unit Noise Power	54 dB（A)
Indoor Unit Weight （Net)	14 Kg

Outdoor Unit Weight (Net)	38 Kg
Indoor Evaporator Bend	3
Indoor Evaporator Row	2
Indoor Evaporator Pipe Diameter	7*0.24 mm
Indoor Fan Motor	YYK30-4
Indoor Net Dimension	970×235×315 mm
Indoor Packing Dimension	1047385317 mm
Liquid Valve	Φ6.35 mm
Gas Valve	Φ12.7 mm
Outdoor Compressor Brand	GMCC
Outdoor Compressor Model	ASM135
Outdoor Fan Motor	D-40-8 310VDC
Outdoor Condenser Pipe Diameter	7*0.24 mm
Outdoor Condenser Row	2
Outdoor Net Dimension	802×298×535 mm
Outdoor Packing Dimension	920×400×620 mm
Container Loading 40HC	190 Units

Rated Capacity, Cooling	24000 BTU
Rated Capacity, Heating	25000 BTU
Rated Running Current, Cooling	0.9-13.2 A
Rated Running Current, Heating	1.2-11.6 A
Max. Input Power	3600 W
Max. Input Current	16 A
EER Cooling	2.83 W/W
COP Heating	2.86 W/W
Power Supply Source V/Hz	220~240V/50Hz
Refrigerant	R410A
Refrigerant Charged	1600 g
Max. Discharge Pressure	4.15 Mpa
Max. Suction Pressure	1.15 Mpa
Air Flow Volume	1250 m3/h
Indoor Unit Noise Power	46 dB（A)
Outdoor Unit Noise Power	57 dB（A)
Indoor Unit Weight （Net)	16 Kg

Outdoor Unit Weight (Net)	48 Kg
Indoor Evaporator Bend	3
Indoor Evaporator Row	2
Indoor Evaporator Pipe Diameter	7*0.24 mm
Indoor Fan Motor	YYK50-4
Indoor Net Dimension	1100235330 mm
Indoor Packing Dimension	1180400317 mm
Liquid Valve	Φ6.35 mm
Gas Valve	Φ15.88 mm
Outdoor Compressor Brand	HITACHI
Outdoor Compressor Model	ATD186
Outdoor Fan Motor	D-69-8
Outdoor Condenser Pipe Diameter	9.52*0.27 mm
Outdoor Condenser Row	1
Outdoor Net Dimension	900343681 mm
Outdoor Packing Dimension	1020430770 mm
Container Loading 40HC	140 Units

Rated Capacity, Cooling	30000 BTU
Rated Capacity, Heating	30700 BTU
Rated Running Current, Cooling	4.2-14.5 A
Rated Running Current, Heating	4.0-14.2 A
Max. Input Power	3800 W
Max. Input Current	17 A
EER Cooling	3.64 W/W
COP Heating	3.96 W/W
Power Supply Source V/Ph/Hz	220～240V-1-50Hz
Refrigerant	R410A
Refrigerant Charged	1780 g
Max. Discharge Pressure	4.15 Mpa
Max. Suction Pressure	1.15 Mpa
Air Flow Volume	1300 m3/h
Indoor Unit Noise Power	47 dB（A)
Outdoor Unit Noise Power	61 dB（A)
Indoor Unit Weight （Net)	17 Kg

Outdoor Unit Weight (Net)	60 Kg
Indoor Evaporator Bend	3
Indoor Evaporator Row	2
Indoor Evaporator Pipe Diameter	7*0.24 mm
Indoor Fan Motor	D-310-50-8A
Indoor Net Dimension	1100235330 mm
Indoor Packing Dimension	1180400317 mm
Liquid Valve	Φ9.52 mm
Gas Valve	Φ15.88 mm
Outdoor Compressor Brand	HITACHI
Outdoor Compressor Model	ATL232
Outdoor Fan Motor	YDK85-6C
Outdoor Condenser Pipe Diameter	7.94*0.24 mm
Outdoor Condenser Row	2.5
Outdoor Net Dimension	900343681 mm
Outdoor Packing Dimension	1020430770 mm
Container Loading 40HC	120 Units

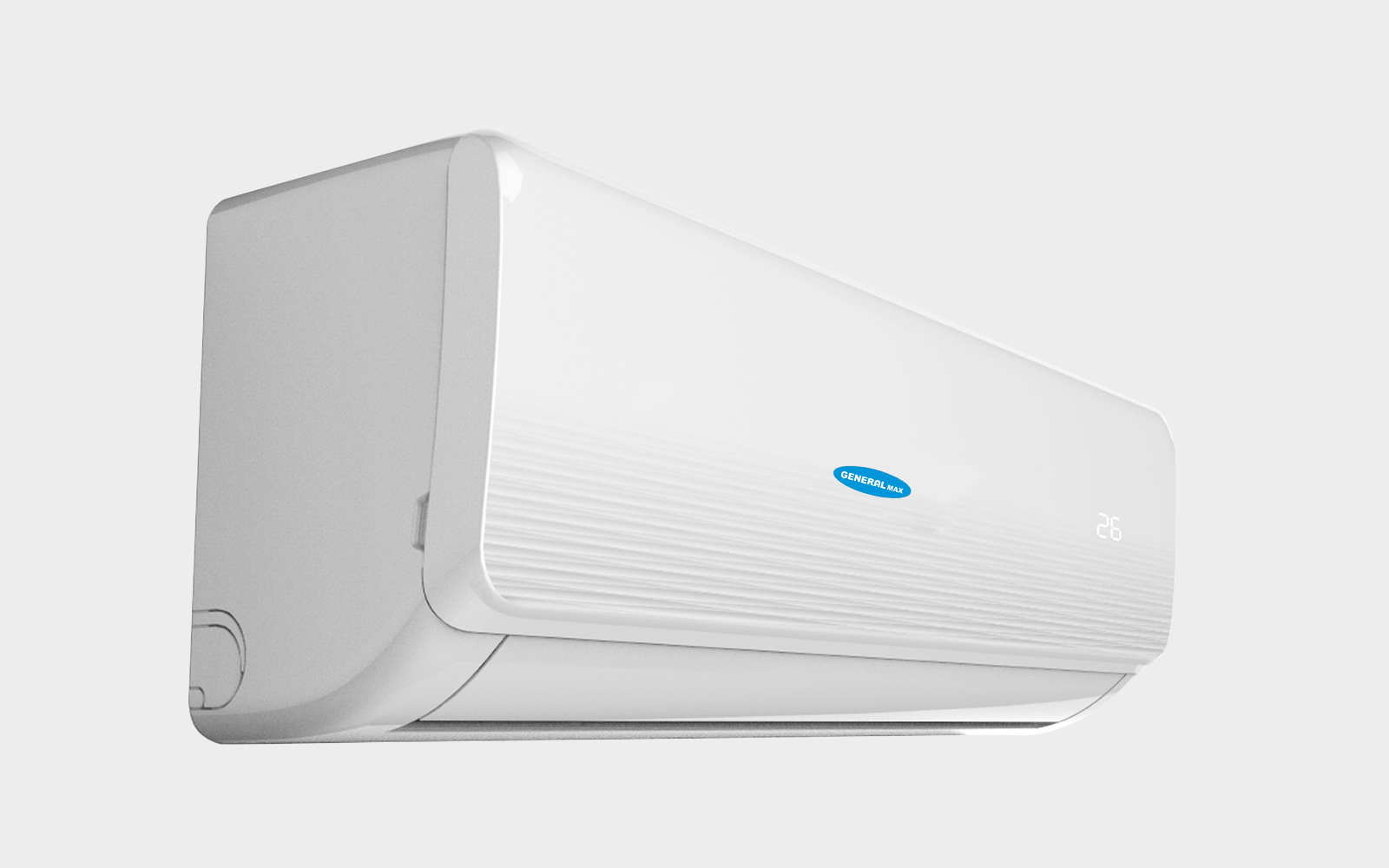

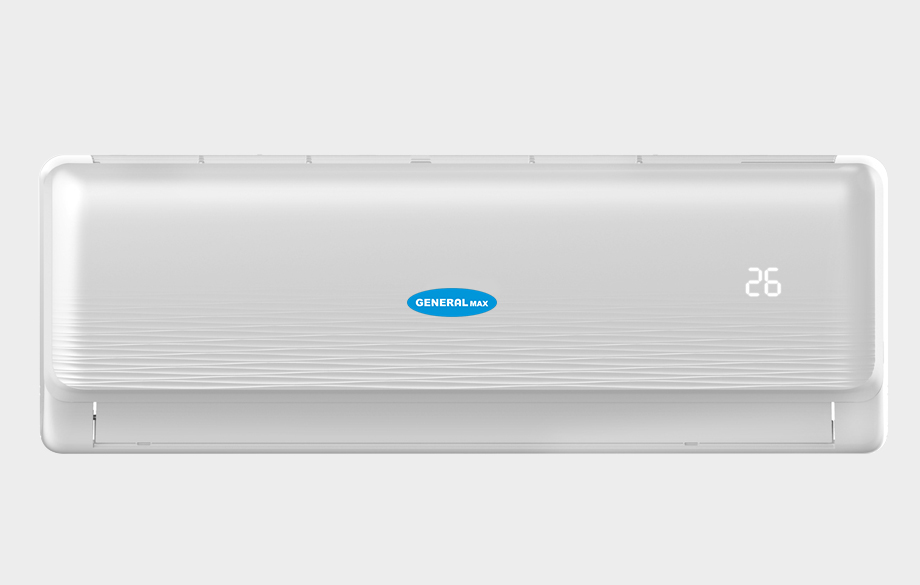

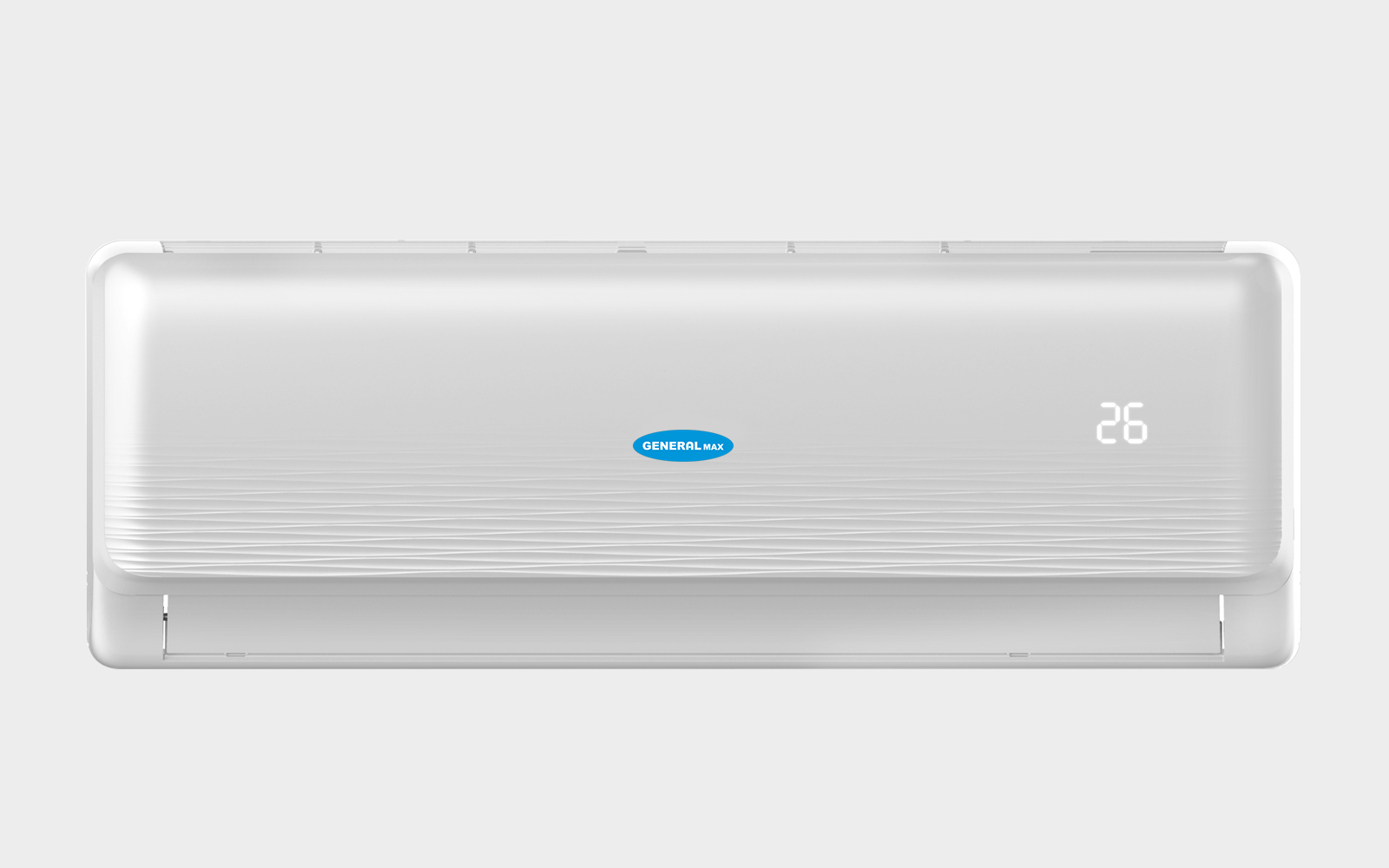

Artcool Hyper

Rated Capacity, Cooling	12000 BTU
Rated Capacity, Heating	12500 BTU
Rated Running Current, Cooling	5.8 A
Rated Running Current, Heating	5.2 A
Max. Input Power	1900 W
Max. Input Current	9.5 A
EER Cooling	2.58 W/W
COP Heating	3 W/W
Power Supply Source V/Hz	220～240V-50Hz
Refrigerant	R22
Refrigerant Charged	730 g
Max. Discharge Pressure	2.8 Mpa
Max. Suction Pressure	0.8 Mpa
Air Flow Volume	550 m3/h
Indoor Unit Noise Power	40 dB（A)
Outdoor Unit Noise Power	52 dB（A)
Indoor Unit Weight （Net)	10 Kg

Outdoor Unit Weight (Net)	30 Kg
Indoor Evaporator Bend	3
Indoor Evaporator Row	2
Indoor Evaporator Pipe Diameter	7*0.24 mm
Indoor Fan Motor	YYK18-4B
Indoor Net Dimension	792292201 mm
Indoor Packing Dimension	888370290 mm
Liquid Valve	φ6.35*0.5 mm
Gas Valve	φ9.52×0.6 mm
Outdoor Compressor Brand	GMCC
Outdoor Compressor Model	HSM220
Outdoor Fan Motor	YDK30-6F
Outdoor Condenser Pipe Diameter	9.52*0.27 mm
Outdoor Condenser Row	2
Outdoor Net Dimension	720540260 mm
Outdoor Packing Dimension	850370620 mm
Container Loading 40HC	25 Units

Rated Capacity, Cooling	18000 BTU
Rated Capacity, Heating	18200 BTU
Rated Running Current, Cooling	8.8 A
Rated Running Current, Heating	6.9 A
Max. Input Power	2680 W
Max. Input Current	13.8 A
EER Cooling	2.69 W/W
COP Heating	3.2 W/W
Power Supply Source V/Hz	220～240V-50Hz
Refrigerant	R22
Refrigerant Charged	1140 g
Max. Discharge Pressure	2.8 Mpa
Max. Suction Pressure	0.8 Mpa
Air Flow Volume	900 m3/h
Indoor Unit Noise Power	43 dB（A)
Outdoor Unit Noise Power	54 dB（A)
Indoor Unit Weight （Net)	12 Kg

Outdoor Unit Weight (Net)	40 Kg
Indoor Evaporator Bend	3
Indoor Evaporator Row	2
Indoor Evaporator Pipe Diameter	7*0.24 mm
Indoor Fan Motor	YYK30-4
Indoor Net Dimension	940316224 mm
Indoor Packing Dimension	1010385310 mm
Liquid Valve	φ6.35*0.5 mm
Gas Valve	φ12.7×0.7 mm
Outdoor Compressor Brand	GMCC
Outdoor Compressor Model	PH310
Outdoor Fan Motor	YDK31-6F
Outdoor Condenser Pipe Diameter	9.52*0.27 mm
Outdoor Condenser Row	1
Outdoor Net Dimension	802535298 mm
Outdoor Packing Dimension	920400620 mm
Container Loading 40HC	195 Units

Rated Capacity, Cooling	24000 BTU
Rated Capacity, Heating	24100 BTU
Rated Running Current, Cooling	12 A
Rated Running Current, Heating	10.9 A
Max. Input Power	3600 W
Max. Input Current	19.2 A
EER Cooling	2.54 W/W
COP Heating	2.96 W/W
Power Supply Source V/Hz	220～240V-50Hz
Refrigerant	R22
Refrigerant Charged	1680 g
Max. Discharge Pressure	2.8 Mpa
Max. Suction Pressure	0.8 Mpa
Air Flow Volume	1200 m3/h
Indoor unit Noise Power	46 dB（A)
Outdoor Unit Noise Power	58 dB（A)
Indoor Unit Weight （Net)	14 Kg

Outdoor Unit Weight (Net)	49 Kg
Indoor Evaporator Bend	3
Indoor Evaporator Row	2
Indoor Evaporator Pipe Diameter	7*0.24 mm
Indoor Fan Motor	YYK30-4
Indoor Net Dimension	1132330232 mm
Indoor Packing Dimension	1225400317 mm
Liquid Valve	Φ6.35*0.5 mm
Gas Valve	Φ15.88*0.75 mm
Outdoor Compressor Brand	GMCC
Outdoor Compressor Model	PH400
Outdoor Fan Motor	YDK69-6B
Outdoor Condenser Pipe Diameter	7*0.24 mm
Outdoor Condenser Row	2
Outdoor Net Dimension	825x655x310 mm
Outdoor Packing Dimension	945435725 mm
Container Loading 40HC	150 Units

Rated Capacity, Cooling	30000 BTU
Rated Capacity, Heating	30500 BTU
Rated Running Current, Cooling	11.4 A
Rated Running Current, Heating	11 A
Max. Input Power	3700 W
Max. Input Current	19 A
EER Cooling	2.85 W/W
COP Heating	3.12 W/W
Power Supply Source V/Ph/Hz	220～240V-1-50Hz
Refrigerant	R22
Refrigerant Charged	1950 g
Max. Discharge Pressure	3.4 Mpa
Max. Suction Pressure	0.8 Mpa
Air Flow Volume	1250 m3/h
Indoor unit Noise Power	47 dB（A)
Outdoor Unit Noise Power	58 dB（A)
Indoor Unit Weight （Net)	14 Kg

Outdoor Unit Weight (Net)	55 Kg
Indoor Evaporator Bend	3
Indoor Evaporator Row	2
Indoor Evaporator Pipe Diameter	7*0.24 mm
Indoor Fan Motor	YYK50-4
Indoor Net Dimension	1132330232 mm
Indoor Packing Dimension	1225400317 mm
Liquid Valve	Φ6.35*0.5 mm
Gas Valve	Φ15.88*0.75 mm
Outdoor Compressor Brand	HIGHLY
Outdoor Compressor Model	SH417
Outdoor Fan Motor	YDK86-6B
Outdoor Condenser Pipe Diameter	7*0.24 mm
Outdoor Condenser Row	2
Outdoor Net Dimension	900343681 mm
Outdoor Packing Dimension	1020430770 mm
Container Loading 40HC	135 Units

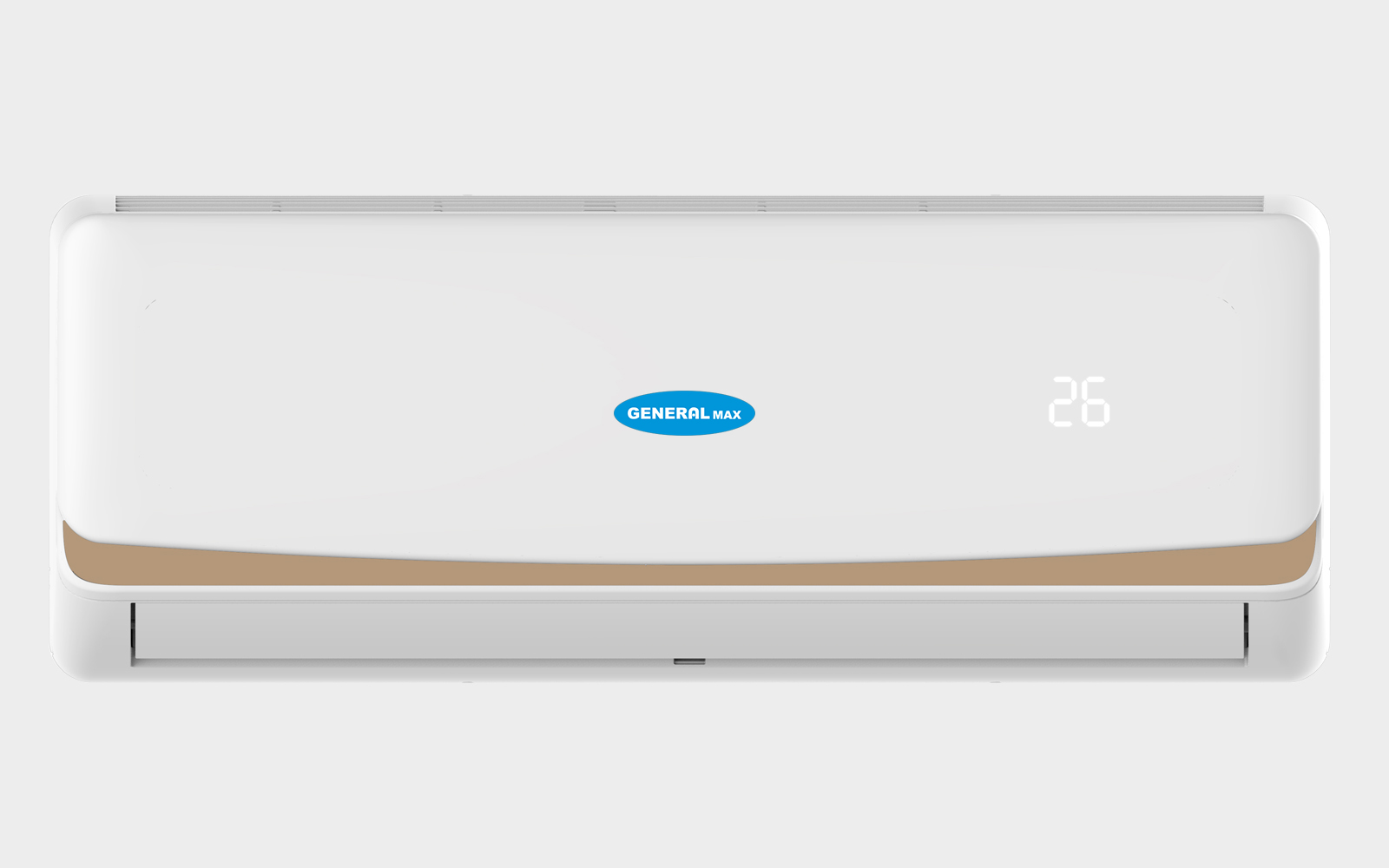

Artcool Digital R22

Rated Capacity, Cooling	12000 BTU
Rated Capacity, Heating	12500 BTU
Rated Running Current, Cooling	5.5 A
Rated Running Current, Heating	4.5 A
Max. Input Power	1700 W
Max. Input Current	9.5 A
EER Cooling	2.25 W/W
COP Heating	3 W/W
Power Supply Source V/Hz	220～240V-50Hz
Refrigerant	R22
Refrigerant Charged	630 g
Max. Discharge Pressure	2.8 Mpa
Max. Suction Pressure	0.8 Mpa
Air Flow Volume	600 m3/h
Indoor Unit Noise Power	40 dB（A)
Outdoor Unit Noise Power	52 dB（A)
Indoor Unit Weight （Net)	7 Kg

Outdoor Unit Weight (Net)	27 Kg
Indoor Evaporator Bend	3
Indoor Evaporator Row	2
Indoor Evaporator Pipe Diameter	7*0.24 mm
Indoor Fan Motor	YYK18-4B
Indoor Net Dimension	750285200 mm
Indoor Packing Dimension	820347277 mm
Liquid Valve	Φ6.35*0.5 mm
Gas Valve	Φ9.52*0.6 mm
Outdoor Compressor Brand	LANDA
Outdoor Compressor Model	QX-B193
Outdoor Fan Motor	YDK25-6
Outdoor Condenser Pipe Diameter	7*0.24 mm
Outdoor Condenser Row	1
Outdoor Net Dimension	700500225 mm
Outdoor Packing Dimension	820330550 mm
Container Loading 40HC	290 Units

Rated Capacity, Cooling	18000 BTU
Rated Capacity, Heating	18400 BTU
Rated Running Current, Cooling	8 A
Rated Running Current, Heating	7 A
Max. Input Power	2600 W
Max. Input Current	13 A
EER Cooling	2.21 W/W
COP Heating	2.73 W/W
Power Supply Source V/Hz	220～240V-50Hz
Refrigerant	R22
Refrigerant Charged	980 g
Max. Discharge Pressure	2.8 Mpa
Max. Suction Pressure	0.8 Mpa
Air Flow Volume	850 m3/h
Indoor Unit Noise Power	42 dB（A)
Outdoor Unit Noise Power	55 dB（A)
Indoor Unit Weight （Net)	12 Kg

Outdoor Unit Weight (Net)	38 Kg
Indoor Evaporator Bend	3
Indoor Evaporator Row	2
Indoor Evaporator Pipe Diameter	7*0.24 mm
Indoor Fan Motor	YYK25-4D
Indoor Net Dimension	900310225 mm
Indoor Packing Dimension	970382302 mm
Liquid Valve	Φ6.35*0.5 mm
Gas Valve	Φ12.7*0.7 mm
Outdoor Compressor Brand	HIGHLY
Outdoor Compressor Model	SL310
Outdoor Fan Motor	YDK31-6A
Outdoor Condenser Pipe Diameter	9.52*0.27 mm
Outdoor Condenser Row	1
Outdoor Net Dimension	802535298 mm
Outdoor Packing Dimension	920400620 mm
Container Loading 40HC	195 Units

Rated Capacity, Cooling	24000 BTU
Rated Capacity, Heating	24100 BTU
Rated Running Current, Cooling	10 A
Rated Running Current, Heating	9.3 A
Max. Input Power	3200 W
Max. Input Current	17 A
EER Cooling	2.75 W/W
COP Heating	3.05 W/W
Power Supply Source V/Hz	220～240V-50Hz
Refrigerant	R22
Refrigerant Charged	1600 g
Max. Discharge Pressure	2.8 Mpa
Max. Suction Pressure	0.8 Mpa
Air Flow Volume	1250 m3/h
Indoor unit Noise Power	44 dB（A)
Outdoor Unit Noise Power	57 dB（A)
Indoor Unit Weight （Net)	16 Kg

Outdoor Unit Weight (Net)	47 Kg
Indoor Evaporator Bend	3
Indoor Evaporator Row	2
Indoor Evaporator Pipe Diameter	7*0.24 mm
Indoor Fan Motor	YYK50-4
Indoor Net Dimension	1082330233 mm
Indoor Packing Dimension	1155397312 mm
Liquid Valve	Φ6.35*0.5 mm
Gas Valve	Φ15.88*0.75 mm
Outdoor Compressor Brand	GMCC
Outdoor Compressor Model	PH370
Outdoor Fan Motor	YDK69-6A
Outdoor Condenser Pipe Diameter	7*0.24 mm
Outdoor Condenser Row	2
Outdoor Net Dimension	800690300 mm
Outdoor Packing Dimension	935415760 mm
Container Loading 40HC	150 Units

Rated Capacity, Cooling	28900 BTU
Rated Capacity, Heating	30000 BTU
Rated Running Current, Cooling	11.4 A
Rated Running Current, Heating	11 A
Max. Input Power	3700 W
Max. Input Current	19 A
EER Cooling	2.58 W/W
COP Heating	2.79 W/W
Power Supply Source V/Hz	220～240V-50Hz
Refrigerant	R22
Refrigerant Charged	1950 g
Max. Discharge Pressure	3.4 Mpa
Max. Suction Pressure	0.8 Mpa
Air Flow Volume	1250 m3/h
Indoor unit Noise Power	46 dB（A)
Outdoor Unit Noise Power	58 dB（A)
Indoor Unit Weight （Net)	16 Kg

Outdoor Unit Weight (Net)	55 Kg
Indoor Evaporator Bend	3
Indoor Evaporator Row	2
Indoor Evaporator Pipe Diameter	7*0.24 mm
Indoor Fan Motor	YYK50-4
Indoor Net Dimension	1082330233 mm
Indoor Packing Dimension	1155397312 mm
Liquid Valve	Φ6.35*0.5 mm
Gas Valve	Φ15.88*0.75 mm
Outdoor Compressor Brand	HITACHI
Outdoor Compressor Model	SH417
Outdoor Fan Motor	YDK86-6B
Outdoor Condenser Pipe Diameter	7*0.24 mm
Outdoor Condenser Row	2
Outdoor Net Dimension	900343681 mm
Outdoor Packing Dimension	1020430770 mm
Container Loading 40HC	135 Units

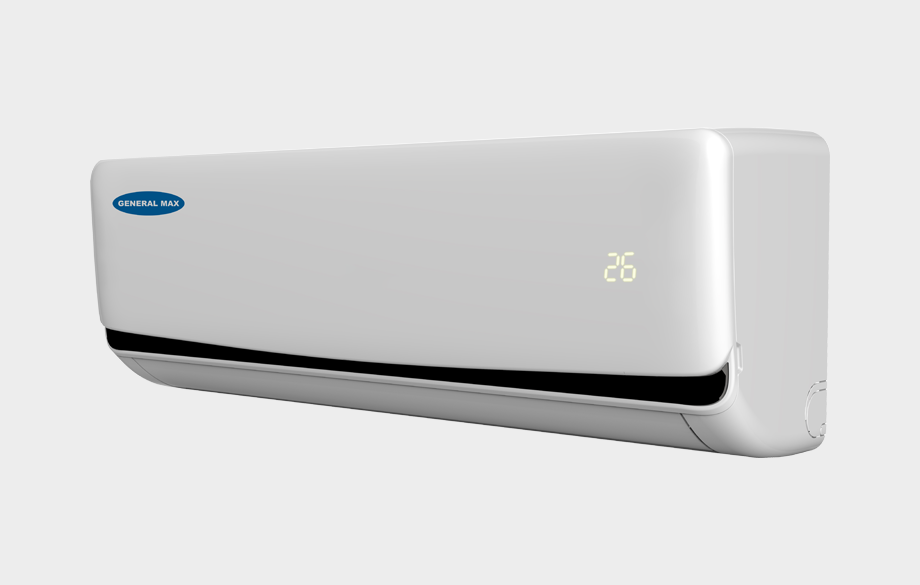

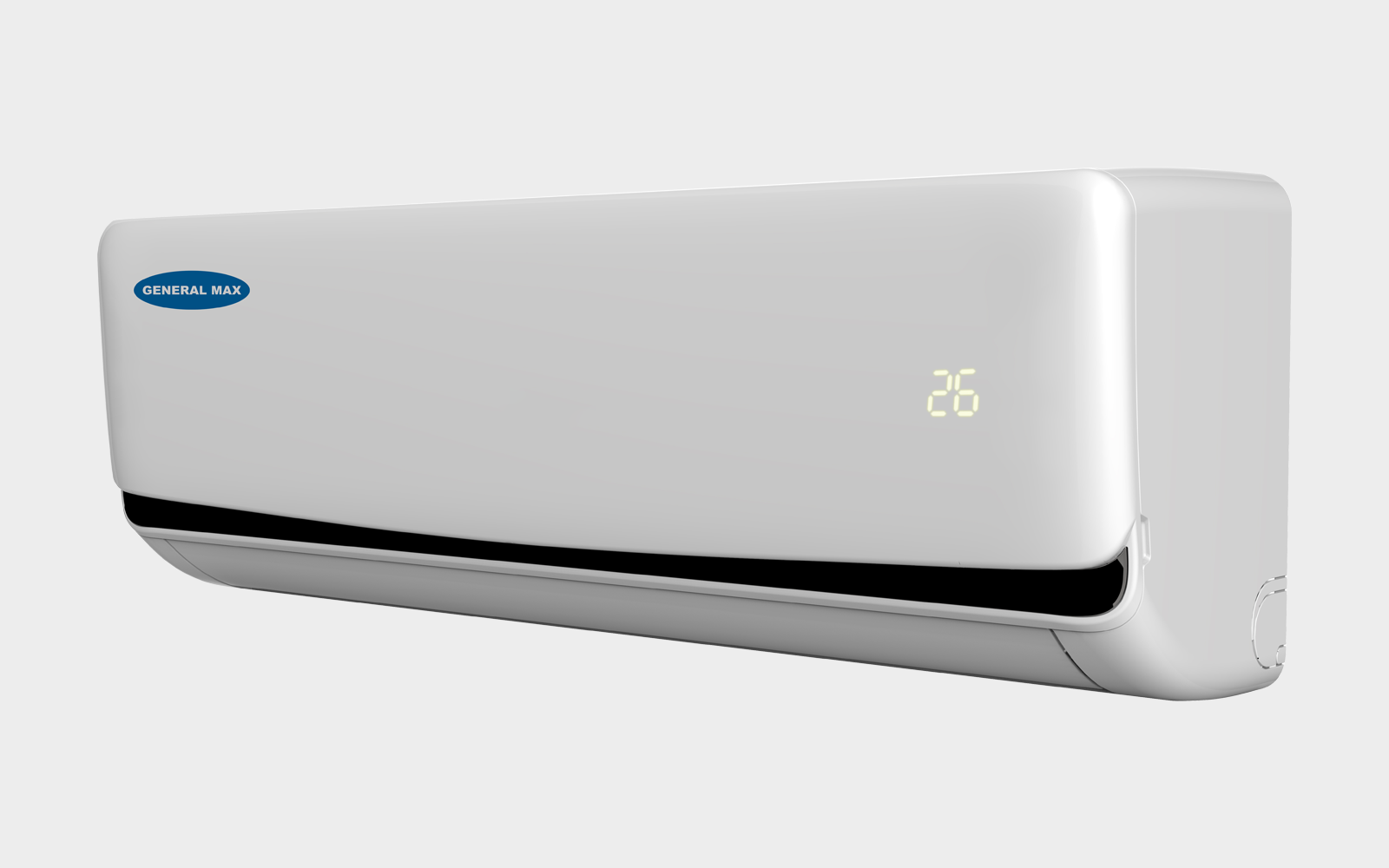

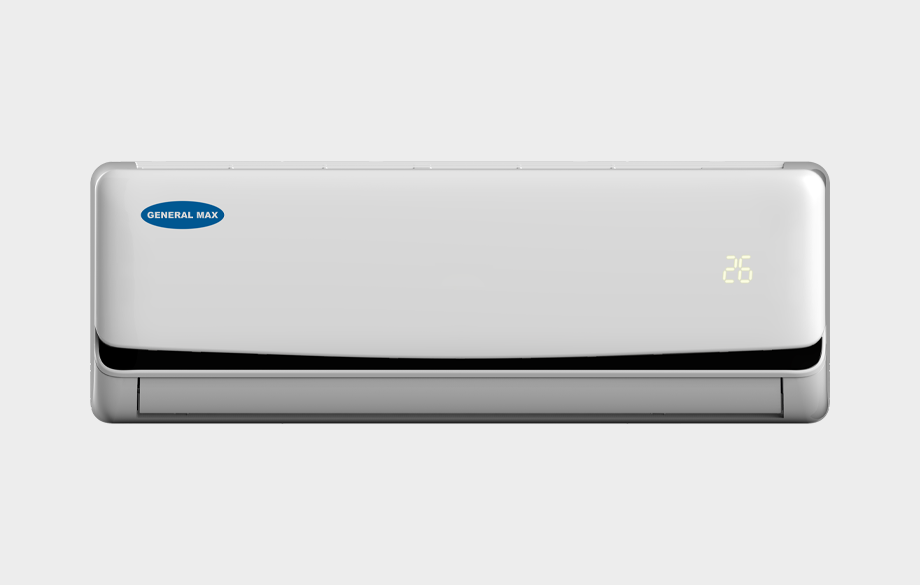

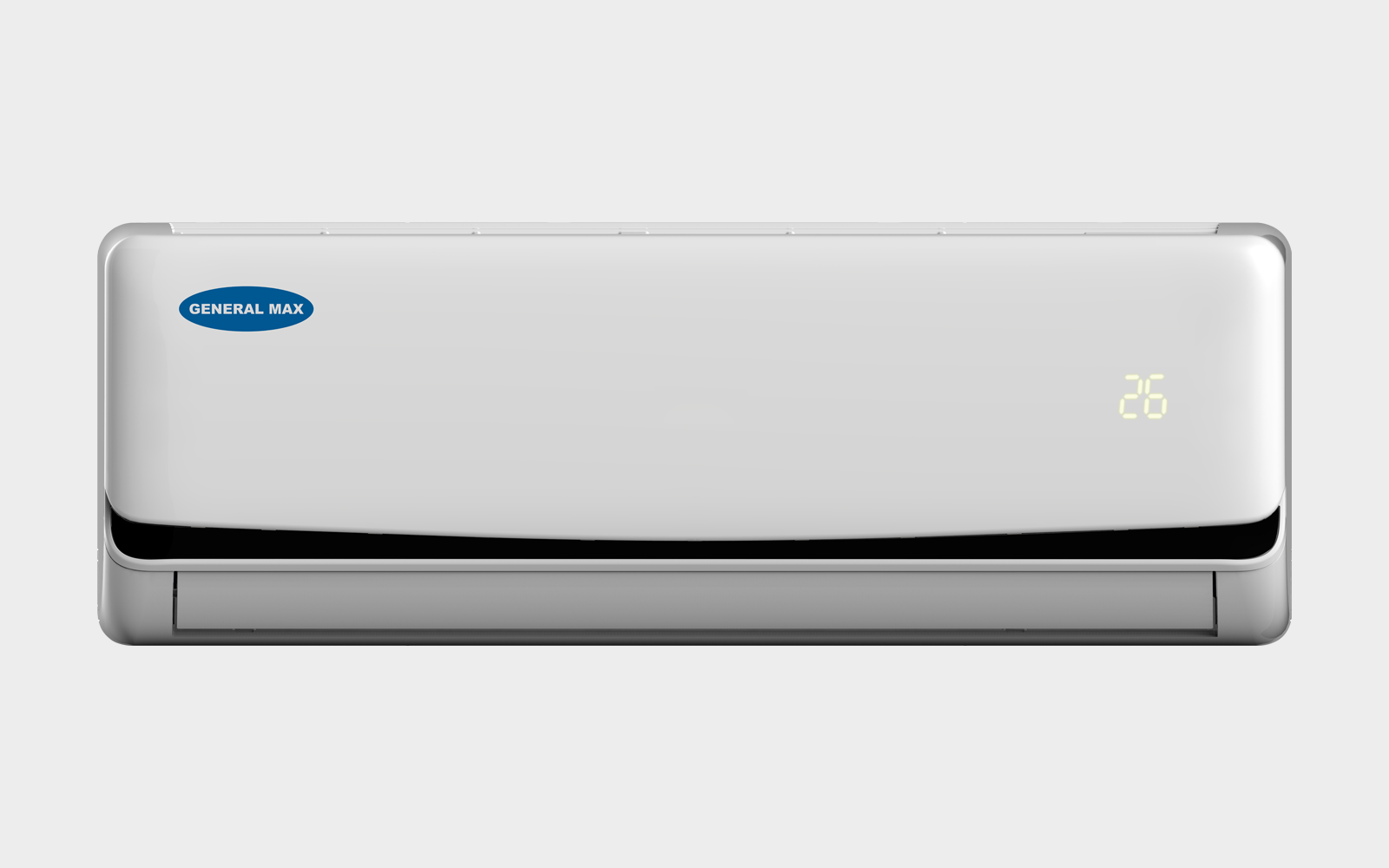

GM-T3-Cool

Cooling (T1)
Capacity , Btu	12000
Current , A	6
EER , W/W	3.51
Cooling (T3)
Capacity , Btu	12100
Current , A	6
EER , W/W	2.27
Heating
Capacity , Btu	-
Current , A	-
COP , W/W	-
Product Specification
Max. Power Input , W	1550
Max. Current , A	8
Max. Air Flow Volume , m3/h	600
Refrigerant
Type ,	R410A
Charged , g	710
Liquid piping , mm	Dg4*0.5
Gas piping , mm	Dg8*0.6
Max. Discharge Pressure , Mpa	4.3
Max. Suction Pressure , Mpa	1.15
Power supply
Voltage , V	220-240
Phase , Ph	1
Frequency , Hz	50

Indoor Unit
Evaporator pipe Material ,	Copper
Evaporator bend ,	3
Evaporator row ,	2
Evaporator pipe diameter , mm	7
Fan Motor ,	YYK18-4B
Max. Noise , dB(A)	32
Outdoor Unit
Compressor Brand ,	HIGHLY
Compressor Type ,	Rotary
Compressor Model ,	ASG130
Fan Motor ,	YDK30-6F
Condenser Pipe Material ,	Copper
Condenser Row ,	1
Condenser Pipe Diameter , mm	7
Max. Noise , dB(A)	42
Length of Pipe kit m	3
Product & Packaging Information
Indoor Unit
Product Dimension (WxHxD) , mm	837x296x205
Package Dimension (WxHxD) , mm	910x360x280
Net weight , Kg	10
Gross weight , Kg	12
Outdoor Unit
Product Dimension (WxHxD) , mm	730x545x285
Package Dimension (WxHxD) , mm	850x620x370
Net weight , Kg	28
Gross weight , Kg	32
Shipping Information
Container Loading (20GP/40GP/40HQ) , Sets	100/213/242
Indoor CBM , m3	0.092
Outdoor CBM , m3	0.195
TTL CBM m3	0.287

Cooling (T1)
Capacity , Btu	18000
Current , A	8.48
EER , W/W	3.51
Cooling (T3)
Capacity , Btu	18000
Current , A	8.48
EER , W/W	2.25
Heating
Capacity , Btu	-
Current , A	-
COP , W/W	-
Product Specification
Max. Power Input , W	2200
Max. Current , A	11.5
Max. Air Flow Volume , m3/h	850
Refrigerant
Type ,	R410A
Charged , g	1000
Liquid piping , mm	Dg4*0.5
Gas piping , mm	Dg10*0.7
Max. Discharge Pressure , Mpa	4.3
Max. Suction Pressure , Mpa	1.15
Power supply
Voltage , V	220-240
Phase , Ph	1
Frequency , Hz	50

Indoor Unit
Evaporator pipe Material ,	Copper
Evaporator bend ,	3
Evaporator row ,	2
Evaporator pipe diameter , mm	7
Fan Motor ,	D-310-30-10A
Max. Noise , dB(A)	37
Outdoor Unit
Compressor Brand ,	HIGHLY
Compressor Type ,	Rotary
Compressor Model ,	ASL193
Fan Motor ,	YDK31-6F
Condenser Pipe Material ,	Copper
Condenser Row ,	1
Condenser Pipe Diameter , mm	9.52
Max. Noise , dB(A)	44
Length of Pipe kit m	3
Product & Packaging Information
Indoor Unit
Product Dimension (WxHxD) , mm	952x310x227
Package Dimension (WxHxD) , mm	1020x375x305
Net weight , Kg	13
Gross weight , Kg	15
Outdoor Unit
Product Dimension (WxHxD) , mm	800x545x315
Package Dimension (WxHxD) , mm	920x620x400
Net weight , Kg	36
Gross weight , Kg	41
Shipping Information
Container Loading (20GP/40GP/40HQ) , Sets	82/172/198
Indoor CBM , m3	0.117
Outdoor CBM , m3	0.228
TTL CBM m3	0.345

Cooling (T1)
Capacity , Btu	24000
Current , A	9.5
EER , W/W	2.52
Cooling (T3)
Capacity , Btu	24000
Current , A	9.5
EER , W/W	2.52
Heating
Capacity , Btu	-
Current , A	-
COP , W/W	-
Product Specification
Max. Power Input , W	3200
Max. Current , A	14
Max. Air Flow Volume , m3/h	1300
Refrigerant
Type ,	R410A
Charged , g	1150
Liquid piping , mm	Dg4*0.5
Gas piping , mm	Dg13*0.75
Max. Discharge Pressure , Mpa	4.3
Max. Suction Pressure , Mpa	1.15
Power supply
Voltage , V	220-240
Phase , Ph	1
Frequency , Hz	50

Indoor Unit
Evaporator pipe Material ,	Copper
Evaporator bend ,	3
Evaporator row ,	2
Evaporator pipe diameter , mm	7
Fan Motor ,	D-310-50-10A
Max. Noise , dB(A)	40
Outdoor Unit
Compressor Brand ,	GMCC
Compressor Type ,	Rotary
Compressor Model ,	ASG220
Fan Motor ,	CW75D
Condenser Pipe Material ,	Copper
Condenser Row ,	2
Condenser Pipe Diameter , mm	5
Max. Noise , dB(A)	49
Length of Pipe kit m	4
Product & Packaging Information
Indoor Unit
Product Dimension (WxHxD) , mm	1082x330x233
Package Dimension (WxHxD) , mm	1155x397x312
Net weight , Kg	13
Gross weight , Kg	16
Outdoor Unit
Product Dimension (WxHxD) , mm	900x700x350
Package Dimension (WxHxD) , mm	1015x762x425
Net weight , Kg	47.5
Gross weight , Kg	52
Shipping Information
Container Loading (20GP/40GP/40HQ) , Sets	63/131/143
Indoor CBM , m3	0.143
Outdoor CBM , m3	0.329
TTL CBM m3	0.472

Cooling (T1)
Capacity , Btu	30000
Current , A	10.5
EER , W/W	3.47
Cooling (T3)
Capacity , Btu	30000
Current , A	12.2
EER , W/W	2.52
Heating
Capacity , Btu	-
Current , A	-
COP , W/W	-
Product Specification
Max. Power Input , W	3200
Max. Current , A	18
Max. Air Flow Volume , m3/h	1550
Refrigerant
Type ,	R410A
Charged , g	1900
Liquid piping , mm	Dg4*0.5
Gas piping , mm	Dg13*0.75
Max. Discharge Pressure , Mpa	4.3
Max. Suction Pressure , Mpa	1.15
Power supply
Voltage , V	220-240
Phase , Ph	1
Frequency , Hz	50

Indoor Unit
Evaporator pipe Material ,	Copper
Evaporator bend ,	3
Evaporator row ,	2
Evaporator pipe diameter , mm	7
Fan Motor ,	D-310-50-8A
Max. Noise , dB(A)	41
Outdoor Unit
Compressor Brand ,	GMCC
Compressor Type ,	Rotary
Compressor Model ,	ASG280
Fan Motor ,	YDK70-6B
Condenser Pipe Material ,	Copper
Condenser Row ,	2
Condenser Pipe Diameter , mm	7.94
Max. Noise , dB(A)	50
Length of Pipe kit m	4
Product & Packaging Information
Indoor Unit
Product Dimension (WxHxD) , mm	1250x360x253
Package Dimension (WxHxD) , mm	1340x445x355
Net weight , Kg	18
Gross weight , Kg	22
Outdoor Unit
Product Dimension (WxHxD) , mm	970x805x395
Package Dimension (WxHxD) , mm	1105x890x495
Net weight , Kg	61
Gross weight , Kg	67
Shipping Information
Container Loading (20GP/40GP/40HQ) , Sets	38/80/100
Indoor CBM , m3	0.212
Outdoor CBM , m3	0.487
TTL CBM m3	0.698

Cooling (T1)
Capacity , Btu	36000
Current , A	12
EER , W/W	3.43
Cooling (T3)
Capacity , Btu	36000
Current , A	13.5
EER , W/W	2.47
Heating
Capacity , Btu	-
Current , A	-
COP , W/W	-
Product Specification
Max. Power Input , W	4300
Max. Current , A	20
Max. Air Flow Volume , m3/h	1550
Refrigerant
Type ,	R410A
Charged , g	2150
Liquid piping , mm	Dg4*0.5
Gas piping , mm	Dg13*0.75
Max. Discharge Pressure , Mpa	4.3
Max. Suction Pressure , Mpa	1.15
Power supply
Voltage , V	220-240
Phase , Ph	1
Frequency , Hz	50

Indoor Unit
Evaporator pipe Material ,	Copper
Evaporator bend ,	3
Evaporator row ,	2
Evaporator pipe diameter , mm	7
Fan Motor ,	D-310-50-8A
Max. Noise , dB(A)	41
Outdoor Unit
Compressor Brand ,	HIGHLY
Compressor Type ,	Rotary
Compressor Model ,	ATH325
Fan Motor ,	D-90-8
Condenser Pipe Material ,	Copper
Condenser Row ,	2
Condenser Pipe Diameter , mm	7.94
Max. Noise , dB(A)	50
Length of Pipe kit m	4
Product & Packaging Information
Indoor Unit
Product Dimension (WxHxD) , mm	1250x360x253
Package Dimension (WxHxD) , mm	1340x445x355
Net weight , Kg	18
Gross weight , Kg	22
Outdoor Unit
Product Dimension (WxHxD) , mm	970x805x395
Package Dimension (WxHxD) , mm	1105x890x495
Net weight , Kg	65
Gross weight , Kg	71
Shipping Information
Container Loading (20GP/40GP/40HQ) , Sets	38/80/100
Indoor CBM , m3	0.212
Outdoor CBM , m3	0.487
TTL CBM m3	0.698

GM-T3

Cooling (T1)
Capacity , Btu	12000
Current , A	5
EER , W/W	3.11
Cooling (T3)
Capacity , Btu
Current , A
EER , W/W
Heating
Capacity , Btu	13000
Current , A	4.2
COP , W/W	3.3
Product Specification
Max. Power Input , W	1500
Max. Current , A	7.5
Max. Air Flow Volume , m3/h	630
Refrigerant
Type ,	R410A
Charged , g	790
Liquid piping , mm	Dg4*0.5
Gas piping , mm	Dg10*0.7
Max. Discharge Pressure , Mpa	4.3
Max. Suction Pressure , Mpa	1.15
Power supply
Voltage , V	220-240
Phase , Ph	1
Frequency , Hz	50

Indoor Unit
Evaporator pipe Material ,	Copper
Evaporator bend ,	3
Evaporator row ,	2
Evaporator pipe diameter , mm	7
Fan Motor ,	YYK18-4B
Max. Noise , dB(A)	33
Outdoor Unit
Compressor Brand ,	HIGHLY
Compressor Type ,	Rotary
Compressor Model ,	ASG130
Fan Motor ,	YDK30-6F
Condenser Pipe Material ,	Copper
Condenser Row ,	2
Condenser Pipe Diameter , mm	7
Max. Noise , dB(A)	43
Length of Pipe kit m	3
Product & Packaging Information
Indoor Unit
Product Dimension (WxHxD) , mm	837x296x205
Package Dimension (WxHxD) , mm	910x360x280
Net weight , Kg	10
Gross weight , Kg	12
Outdoor Unit
Product Dimension (WxHxD) , mm	730x545x285
Package Dimension (WxHxD) , mm	850x620x370
Net weight , Kg	30
Gross weight , Kg	34
Shipping Information
Container Loading (20GP/40GP/40HQ) , Sets	242
Indoor CBM , m3	0.092
Outdoor CBM , m3	0.195
TTL CBM m3	0.287

Cooling (T1)
Capacity , Btu	18000
Current , A	7.5
EER , W/W	2.9
Cooling (T3)
Capacity , Btu
Current , A
EER , W/W
Heating
Capacity , Btu	18500
Current , A	7
COP , W/W	3.21
Product Specification
Max. Power Input , W	2300
Max. Current , A	12
Max. Air Flow Volume , m3/h	850
Refrigerant
Type ,	R410A
Charged , g	1320
Liquid piping , mm	Dg4*0.5
Gas piping , mm	Dg10*0.7
Max. Discharge Pressure , Mpa	4.3
Max. Suction Pressure , Mpa	1.15
Power supply
Voltage , V	220-240
Phase , Ph	1
Frequency , Hz	50

Indoor Unit
Evaporator pipe Material ,	Copper
Evaporator bend ,	3
Evaporator row ,	2
Evaporator pipe diameter , mm	5
Fan Motor ,	YYK30-4
Max. Noise , dB(A)	38
Outdoor Unit
Compressor Brand ,	HIGHLY
Compressor Type ,	Rotary
Compressor Model ,	ASL193
Fan Motor ,	YDK31-6A
Condenser Pipe Material ,	Copper
Condenser Row ,	2
Condenser Pipe Diameter , mm	7
Max. Noise , dB(A)	46
Length of Pipe kit m	3
Product & Packaging Information
Indoor Unit
Product Dimension (WxHxD) , mm	952x310x227
Package Dimension (WxHxD) , mm	1020x375x305
Net weight , Kg	12
Gross weight , Kg	14
Outdoor Unit
Product Dimension (WxHxD) , mm	800x545x315
Package Dimension (WxHxD) , mm	920x620x400
Net weight , Kg	38
Gross weight , Kg	43
Shipping Information
Container Loading (20GP/40GP/40HQ) , Sets	198
Indoor CBM , m3	0.117
Outdoor CBM , m3	0.228
TTL CBM m3	0.345

Cooling (T1)
Capacity , Btu	24000
Current , A	10.5
EER , W/W	2.9
Cooling (T3)
Capacity , Btu
Current , A
EER , W/W
Heating
Capacity , Btu	24500
Current , A	9.5
COP , W/W	3.24
Product Specification
Max. Power Input , W	3800
Max. Current , A	16
Max. Air Flow Volume , m3/h	1250
Refrigerant
Type ,	R410A
Charged , g	1200
Liquid piping , mm	Dg4*0.5
Gas piping , mm	Dg13*0.75
Max. Discharge Pressure , Mpa	4.3
Max. Suction Pressure , Mpa	1.15
Power supply
Voltage , V	220-240
Phase , Ph	1
Frequency , Hz	50

Indoor Unit
Evaporator pipe Material ,	Copper
Evaporator bend ,	3
Evaporator row ,	2
Evaporator pipe diameter , mm	7
Fan Motor ,	D-310-50-10A
Max. Noise , dB(A)	42
Outdoor Unit
Compressor Brand ,	HIGHLY
Compressor Type ,	Rotary
Compressor Model ,	ASH250
Fan Motor ,	YDK65-6L
Condenser Pipe Material ,	Copper
Condenser Row ,	2
Condenser Pipe Diameter , mm	5
Max. Noise , dB(A)	48
Length of Pipe kit m	4
Product & Packaging Information
Indoor Unit
Product Dimension (WxHxD) , mm	1082x330x233
Package Dimension (WxHxD) , mm	1155x397x312
Net weight , Kg	13
Gross weight , Kg	16
Outdoor Unit
Product Dimension (WxHxD) , mm	830x655x310
Package Dimension (WxHxD) , mm	945x715x400
Net weight , Kg	43.5
Gross weight , Kg	49
Shipping Information
Container Loading (20GP/40GP/40HQ) , Sets	155
Indoor CBM , m3	0.143
Outdoor CBM , m3	0.270
TTL CBM m3	0.413

Cooling (T1)
Capacity , Btu	30000
Current , A	11.7
EER , W/W	2.93
Cooling (T3)
Capacity , Btu
Current , A
EER , W/W
Heating
Capacity , Btu	30000
Current , A	11.3
COP , W/W	3.04
Product Specification
Max. Power Input , W	3700
Max. Current , A	18.5
Max. Air Flow Volume , m3/h	1600
Refrigerant
Type ,	R410A
Charged , g	1700
Liquid piping , mm	Dg4*0.5
Gas piping , mm	Dg13*0.75
Max. Discharge Pressure , Mpa	4.3
Max. Suction Pressure , Mpa	1.15
Power supply
Voltage , V	220-240
Phase , Ph	1
Frequency , Hz	50

Indoor Unit
Evaporator pipe Material ,	Copper
Evaporator bend ,	3
Evaporator row ,	2
Evaporator pipe diameter , mm	7
Fan Motor ,	D-310-50-10A
Max. Noise , dB(A)	42
Outdoor Unit
Compressor Brand ,	HIGHLY
Compressor Type ,	Rotary
Compressor Model ,	ASH295
Fan Motor ,	CW75D
Condenser Pipe Material ,	Copper
Condenser Row ,	2
Condenser Pipe Diameter , mm	7
Max. Noise , dB(A)	50
Length of Pipe kit m	4
Product & Packaging Information
Indoor Unit
Product Dimension (WxHxD) , mm	1250x358x253
Package Dimension (WxHxD) , mm	1340x445x355
Net weight , Kg	18
Gross weight , Kg	21
Outdoor Unit
Product Dimension (WxHxD) , mm	900x700x350
Package Dimension (WxHxD) , mm	1015x762x425
Net weight , Kg	52
Gross weight , Kg	58
Shipping Information
Container Loading (20GP/40GP/40HQ) , Sets	50/110/122
Indoor CBM , m3	0.212
Outdoor CBM , m3	0.329
TTL CBM m3	0.540

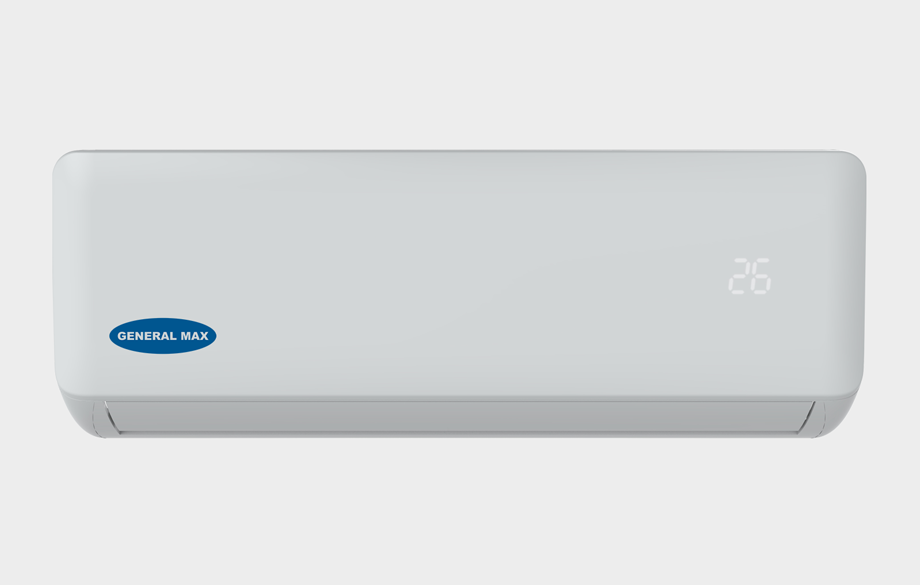

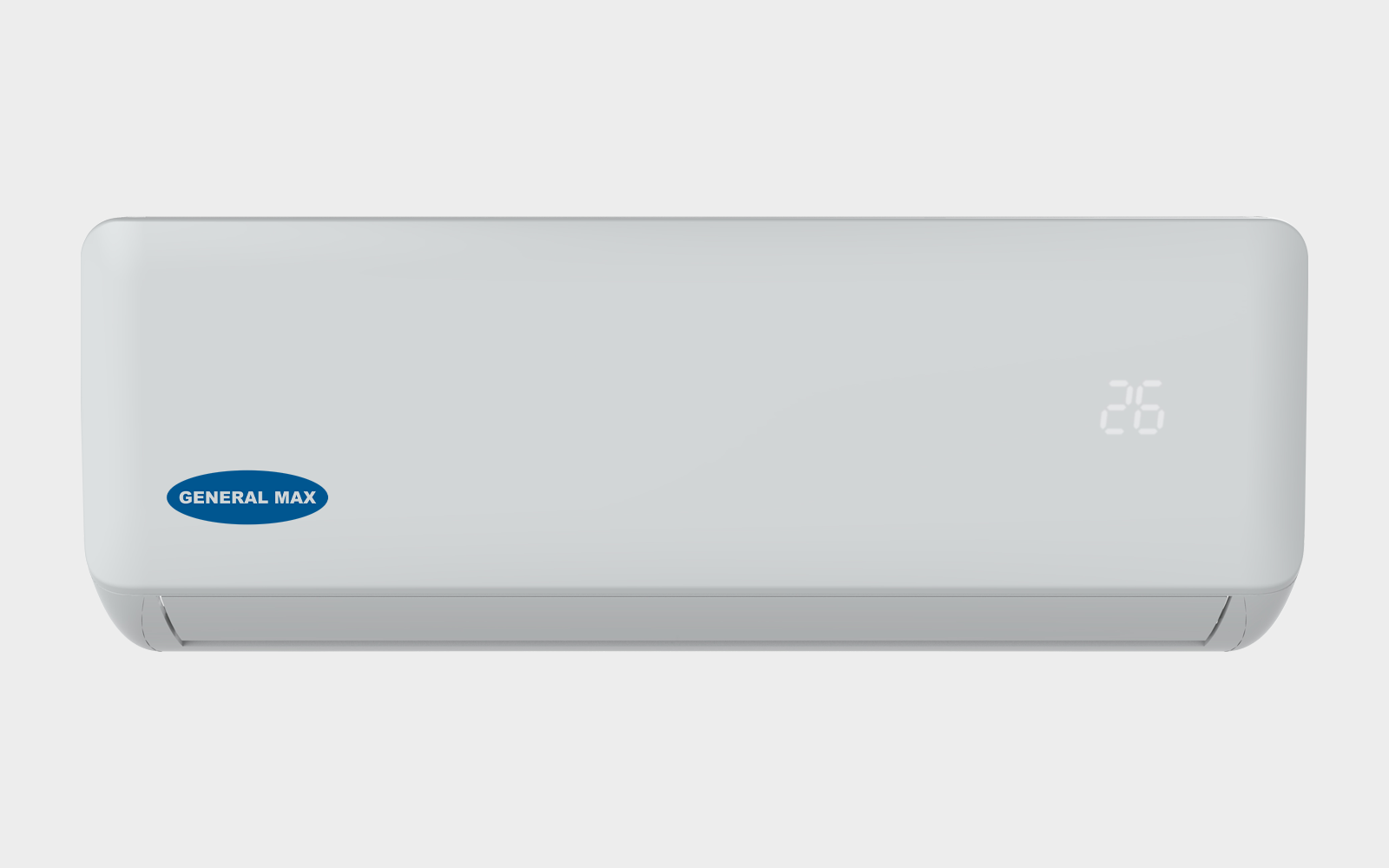

GM-INV

Cooling (T1)
Capacity , Btu	11942(2730~13989)
Current , A	5.6(0.7~7.8)
EER , W/W	SEER6.19
Cooling (T3)
Capacity , Btu	-
Current , A	-
EER , W/W	-
Heating
Capacity , Btu	12283(3412~14330)
Current , A	4.9(1.5~8.0)
COP , W/W	SCOP4.03
Product Specification
Max. Power Input , W	1900
Max. Current , A	9.5
Max. Air Flow Volume , m3/h	600
Refrigerant
Type ,	R32
Charged , g	560
Liquid piping , mm	Dg4*0.5
Gas piping , mm	Dg8*0.6
Max. Discharge Pressure , Mpa	4.3
Max. Suction Pressure , Mpa	2.5
Power supply
Voltage , V	220-240
Phase , Ph	1
Frequency , Hz	50

Indoor Unit
Evaporator pipe Material ,	Copper
Evaporator bend ,	3
Evaporator row ,	2
Evaporator pipe diameter , mm	5
Fan Motor ,	YYK18-4B
Max. Noise , dB(A)	43
Outdoor Unit
Compressor Brand ,	GMCC
Compressor Type ,	Rotary
Compressor Model ,	KSN98
Fan Motor ,	D-35-10A
Condenser Pipe Material ,	Copper
Condenser Row ,	1
Condenser Pipe Diameter , mm	7
Max. Noise , dB(A)	52
Length of Pipe kit m	3
Product & Packaging Information
Indoor Unit
Product Dimension (WxHxD) , mm	750x285x200
Package Dimension (WxHxD) , mm	820x347x277
Net weight , Kg	8
Gross weight , Kg	10
Outdoor Unit
Product Dimension (WxHxD) , mm	705x530x279
Package Dimension (WxHxD) , mm	825x595x345
Net weight , Kg	22.5
Gross weight , Kg	26.5
Shipping Information
Container Loading (20GP/40GP/40HQ) , Sets	117/242/282
Indoor CBM , m3	0.079
Outdoor CBM , m3	0.169
TTL CBM m3	0.248

Cooling (T1)
Capacity , Btu	17401(4436~18084)
Current , A	7.4(1.2~7.9)
EER , W/W	SEER6.7
Cooling (T3)
Capacity , Btu	-
Current , A	-
EER , W/W	-
Heating
Capacity , Btu	17742(4436~18084)
Current , A	6.2(1.0~6.6)
COP , W/W	SCOP4.0
Product Specification
Max. Power Input , W	1900
Max. Current , A	9
Max. Air Flow Volume , m3/h	850
Refrigerant
Type ,	R32
Charged , g	540
Liquid piping , mm	Dg4*0.5
Gas piping , mm	Dg10*0.7
Max. Discharge Pressure , Mpa	4.3
Max. Suction Pressure , Mpa	2.5
Power supply
Voltage , V	220-240
Phase , Ph	1
Frequency , Hz	50

Indoor Unit
Evaporator pipe Material ,	Copper
Evaporator bend ,	3
Evaporator row ,	2
Evaporator pipe diameter , mm	5
Fan Motor ,	D-310-30-10A
Max. Noise , dB(A)	47
Outdoor Unit
Compressor Brand ,	GMCC
Compressor Type ,	Rotary
Compressor Model ,	KSN98
Fan Motor ,	D-35-10L
Condenser Pipe Material ,	Copper
Condenser Row ,	2
Condenser Pipe Diameter , mm	5
Max. Noise , dB(A)	53
Length of Pipe kit m	3
Product & Packaging Information
Indoor Unit
Product Dimension (WxHxD) , mm	900x310x225
Package Dimension (WxHxD) , mm	970x382x302
Net weight , Kg	10
Gross weight , Kg	13
Outdoor Unit
Product Dimension (WxHxD) , mm	705x530x279
Package Dimension (WxHxD) , mm	825x595x345
Net weight , Kg	23
Gross weight , Kg	27
Shipping Information
Container Loading (20GP/40GP/40HQ) , Sets	98/200/233
Indoor CBM , m3	0.112
Outdoor CBM , m3	0.169
TTL CBM m3	0.281

Cooling (T1)
Capacity , Btu	24908(6142~25249)
Current , A	10(1~12)
EER , W/W	SEER6.53
Cooling (T3)
Capacity , Btu	-
Current , A	-
EER , W/W	-
Heating
Capacity , Btu	24908(6142~27296)
Current , A	9.5(1~11)
COP , W/W	SCOP4.09
Product Specification
Max. Power Input , W	3400
Max. Current , A	16
Max. Air Flow Volume , m3/h	1300
Refrigerant
Type ,	R32
Charged , g	1300
Liquid piping , mm	Dg4*0.5
Gas piping , mm	Dg13*0.75
Max. Discharge Pressure , Mpa	4.3
Max. Suction Pressure , Mpa	2.5
Power supply
Voltage , V	220-240
Phase , Ph	1
Frequency , Hz	50

Indoor Unit
Evaporator pipe Material ,	Copper
Evaporator bend ,	3
Evaporator row ,	2
Evaporator pipe diameter , mm	7
Fan Motor ,	D-310-50-8A
Max. Noise , dB(A)	53
Outdoor Unit
Compressor Brand ,	SANYO
Compressor Type ,	Rotary
Compressor Model ,	C-6RZ146
Fan Motor ,	D-65-10A
Condenser Pipe Material ,	Copper
Condenser Row ,	1
Condenser Pipe Diameter , mm	9.52
Max. Noise , dB(A)	56
Length of Pipe kit m	4
Product & Packaging Information
Indoor Unit
Product Dimension (WxHxD) , mm	1082x330x233
Package Dimension (WxHxD) , mm	1155x397x312
Net weight , Kg	13
Gross weight , Kg	17
Outdoor Unit
Product Dimension (WxHxD) , mm	900x700x350
Package Dimension (WxHxD) , mm	1015x762x425
Net weight , Kg	39
Gross weight , Kg	46
Shipping Information
Container Loading (20GP/40GP/40HQ) , Sets	62/130/143
Indoor CBM , m3	0.143
Outdoor CBM , m3	0.329
TTL CBM m3	0.472

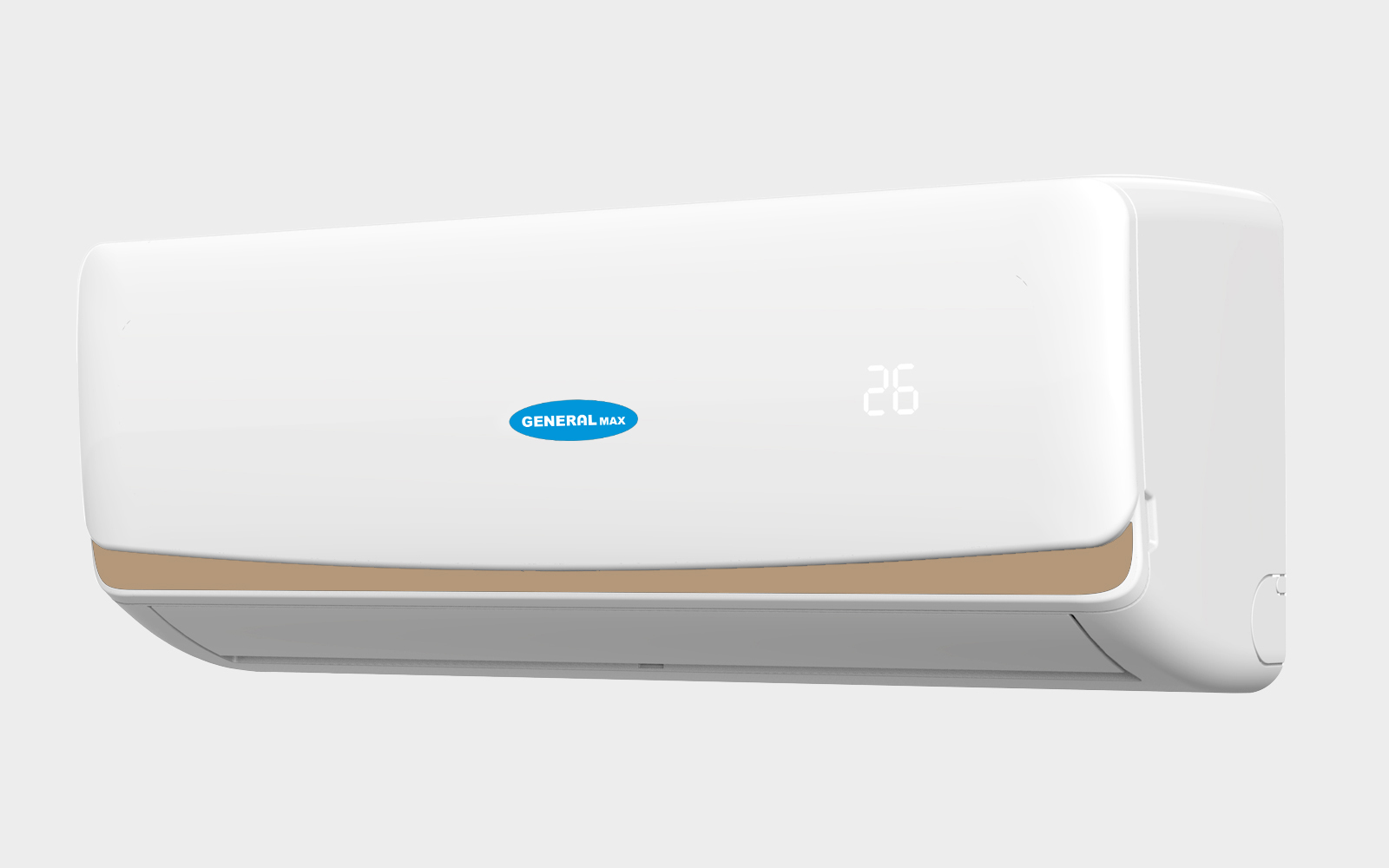

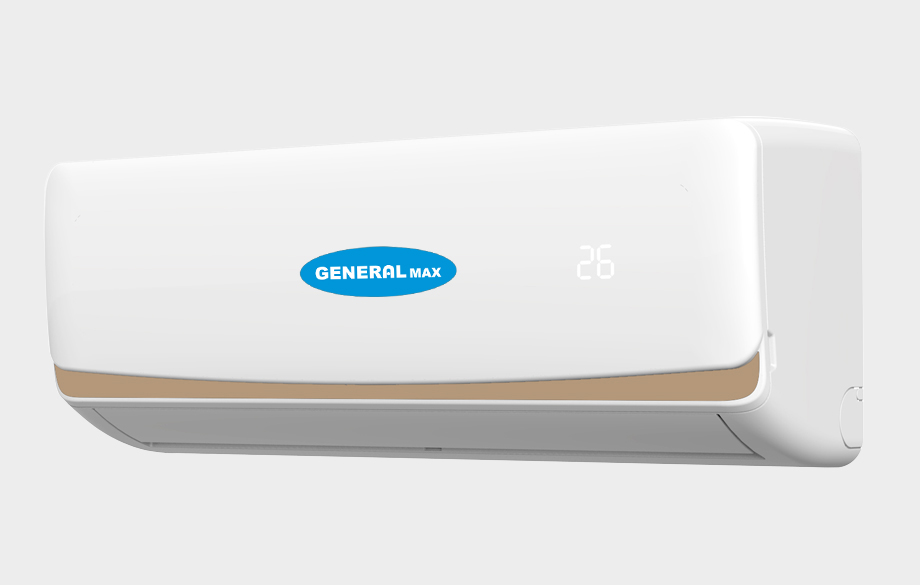

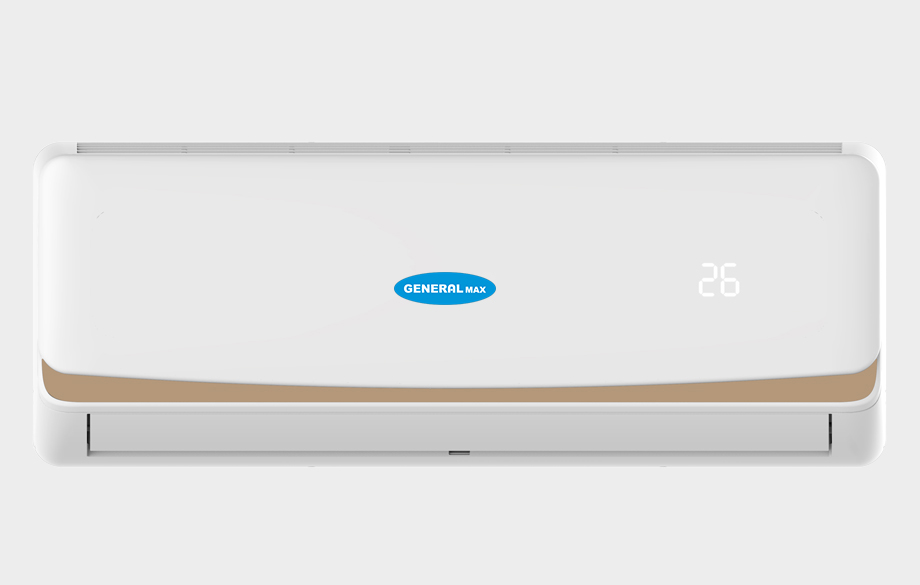

Artcool Digital R410A

Cooling (T1)
Capacity , Btu	12200
Current , A	4.8
EER , W/W	3.21
Cooling (T3)
Capacity , Btu	-
Current , A	-
EER , W/W	-
Heating
Capacity , Btu	12500
Current , A	4.4
COP , W/W	3.61
Product Specification
Max. Power Input , W	1650
Max. Current , A	8
Max. Air Flow Volume , m3/h	620
Refrigerant
Type ,	R410A
Charged , g	510
Liquid piping , mm	Dg4*0.5
Gas piping , mm	Dg8*0.6
Max. Discharge Pressure , Mpa	4.15
Max. Suction Pressure , Mpa	1.15
Power supply
Voltage , V	220-240
Phase , Ph	1
Frequency , Hz	50

Indoor Unit
Evaporator pipe Material ,	Copper
Evaporator bend ,	3
Evaporator row ,	2
Evaporator pipe diameter , mm	5
Fan Motor ,	YYK18-4B
Max. Noise , dB(A)	34
Outdoor Unit
Compressor Brand ,	GMCC
Compressor Type ,	Rotary
Compressor Model ,	ASM130
Fan Motor ,	YDK25-6B
Condenser Pipe Material ,	Copper
Condenser Row ,	1
Condenser Pipe Diameter , mm	7
Max. Noise , dB(A)	42
Length of Pipe kit m	3
Product & Packaging Information
Indoor Unit
Product Dimension (WxHxD) , mm	750x285x200
Package Dimension (WxHxD) , mm	820x347x277
Net weight , Kg	8
Gross weight , Kg	10
Outdoor Unit
Product Dimension (WxHxD) , mm	660x500x265
Package Dimension (WxHxD) , mm	780x570x345
Net weight , Kg	25
Gross weight , Kg	28
Shipping Information
Container Loading (20GP/40GP/40HQ) , Sets	126/262/292
Indoor CBM , m3	0.079
Outdoor CBM , m3	0.153
TTL CBM m3	0.232

Cooling (T1)
Capacity , Btu	18000
Current , A	8
EER , W/W	3
Cooling (T3)
Capacity , Btu	-
Current , A	-
EER , W/W	-
Heating
Capacity , Btu	18500
Current , A	7.5
COP , W/W	3.35
Product Specification
Max. Power Input , W	3000
Max. Current , A	13
Max. Air Flow Volume , m3/h	970
Refrigerant
Type ,	R410A
Charged , g	900
Liquid piping , mm	Dg4*0.5
Gas piping , mm	Dg10*0.7
Max. Discharge Pressure , Mpa	4.15
Max. Suction Pressure , Mpa	1.15
Power supply
Voltage , V	220-240
Phase , Ph	1
Frequency , Hz	50

Indoor Unit
Evaporator pipe Material ,	Copper
Evaporator bend ,	3
Evaporator row ,	2
Evaporator pipe diameter , mm	7
Fan Motor ,	YYK25-4D
Max. Noise , dB(A)	36
Outdoor Unit
Compressor Brand ,	GMCC
Compressor Type ,	Rotary
Compressor Model ,	ASF200
Fan Motor ,	YDK31-6A
Condenser Pipe Material ,	Copper
Condenser Row ,	1
Condenser Pipe Diameter , mm	7.94
Max. Noise , dB(A)	45
Length of Pipe kit m	3
Product & Packaging Information
Indoor Unit
Product Dimension (WxHxD) , mm	900x310x225
Package Dimension (WxHxD) , mm	970x382x302
Net weight , Kg	11
Gross weight , Kg	13
Outdoor Unit
Product Dimension (WxHxD) , mm	800x545x315
Package Dimension (WxHxD) , mm	920x620x400
Net weight , Kg	34
Gross weight , Kg	37
Shipping Information
Container Loading (20GP/40GP/40HQ) , Sets	82/172/200
Indoor CBM , m3	0.112
Outdoor CBM , m3	0.228
TTL CBM m3	0.340

Cooling (T1)
Capacity , Btu	24000
Current , A	8.7
EER , W/W	3.21
Cooling (T3)
Capacity , Btu	-
Current , A	-
EER , W/W	-
Heating
Capacity , Btu	24300
Current , A	7.5
COP , W/W	3.71
Product Specification
Max. Power Input , W	2950
Max. Current , A	15.7
Max. Air Flow Volume , m3/h	1150
Refrigerant
Type ,	R410A
Charged , g	1380
Liquid piping , mm	Dg4*0.5
Gas piping , mm	Dg13*0.75
Max. Discharge Pressure , Mpa	4.15
Max. Suction Pressure , Mpa	1.15
Power supply
Voltage , V	220-240
Phase , Ph	1
Frequency , Hz	50

Indoor Unit
Evaporator pipe Material ,	Copper
Evaporator bend ,	3
Evaporator row ,	2
Evaporator pipe diameter , mm	7
Fan Motor ,	D-310-50-10A
Max. Noise , dB(A)	41
Outdoor Unit
Compressor Brand ,	HIGHLY
Compressor Type ,	Rotary
Compressor Model ,	GSH239
Fan Motor ,	YDK69-6B
Condenser Pipe Material ,	Copper
Condenser Row ,	2
Condenser Pipe Diameter , mm	7
Max. Noise , dB(A)	47
Length of Pipe kit m	4
Product & Packaging Information
Indoor Unit
Product Dimension (WxHxD) , mm	1082x330x233
Package Dimension (WxHxD) , mm	1155x397x312
Net weight , Kg	13
Gross weight , Kg	16
Outdoor Unit
Product Dimension (WxHxD) , mm	825x655x310
Package Dimension (WxHxD) , mm	945x725x435
Net weight , Kg	46
Gross weight , Kg	52
Shipping Information
Container Loading (20GP/40GP/40HQ) , Sets	62/134/155
Indoor CBM , m3	0.143
Outdoor CBM , m3	0.298
TTL CBM m3	0.441

Cooling (T1)
Capacity , Btu	30000
Current , A	11
EER , W/W	2.9
Cooling (T3)
Capacity , Btu	-
Current , A	-
EER , W/W	-
Heating
Capacity , Btu	30000
Current , A	10.5
COP , W/W	3.1
Product Specification
Max. Power Input , W	3500
Max. Current , A	17.5
Max. Air Flow Volume , m3/h	1300
Refrigerant
Type ,	R410A
Charged , g	1450
Liquid piping , mm	Dg4*0.5
Gas piping , mm	Dg13*0.75
Max. Discharge Pressure , Mpa	4.15
Max. Suction Pressure , Mpa	1.15
Power supply
Voltage , V	220-240
Phase , Ph	1
Frequency , Hz	50

Indoor Unit
Evaporator pipe Material ,	Copper
Evaporator bend ,	3
Evaporator row ,	2
Evaporator pipe diameter , mm	7
Fan Motor ,	D-310-50-10A
Max. Noise , dB(A)	41
Outdoor Unit
Compressor Brand ,	HIGHLY
Compressor Type ,	Rotary
Compressor Model ,	ASH295
Fan Motor ,	CW75D
Condenser Pipe Material ,	Copper
Condenser Row ,	2
Condenser Pipe Diameter , mm	7
Max. Noise , dB(A)	50
Length of Pipe kit m	4
Product & Packaging Information
Indoor Unit
Product Dimension (WxHxD) , mm	1082x330x233
Package Dimension (WxHxD) , mm	1155x397x312
Net weight , Kg	13
Gross weight , Kg	17
Outdoor Unit
Product Dimension (WxHxD) , mm	900x700x350
Package Dimension (WxHxD) , mm	1015x762x425
Net weight , Kg	50.5
Gross weight , Kg	56
Shipping Information
Container Loading (20GP/40GP/40HQ) , Sets	62/130/143
Indoor CBM , m3	0.143
Outdoor CBM , m3	0.329
TTL CBM m3	0.472

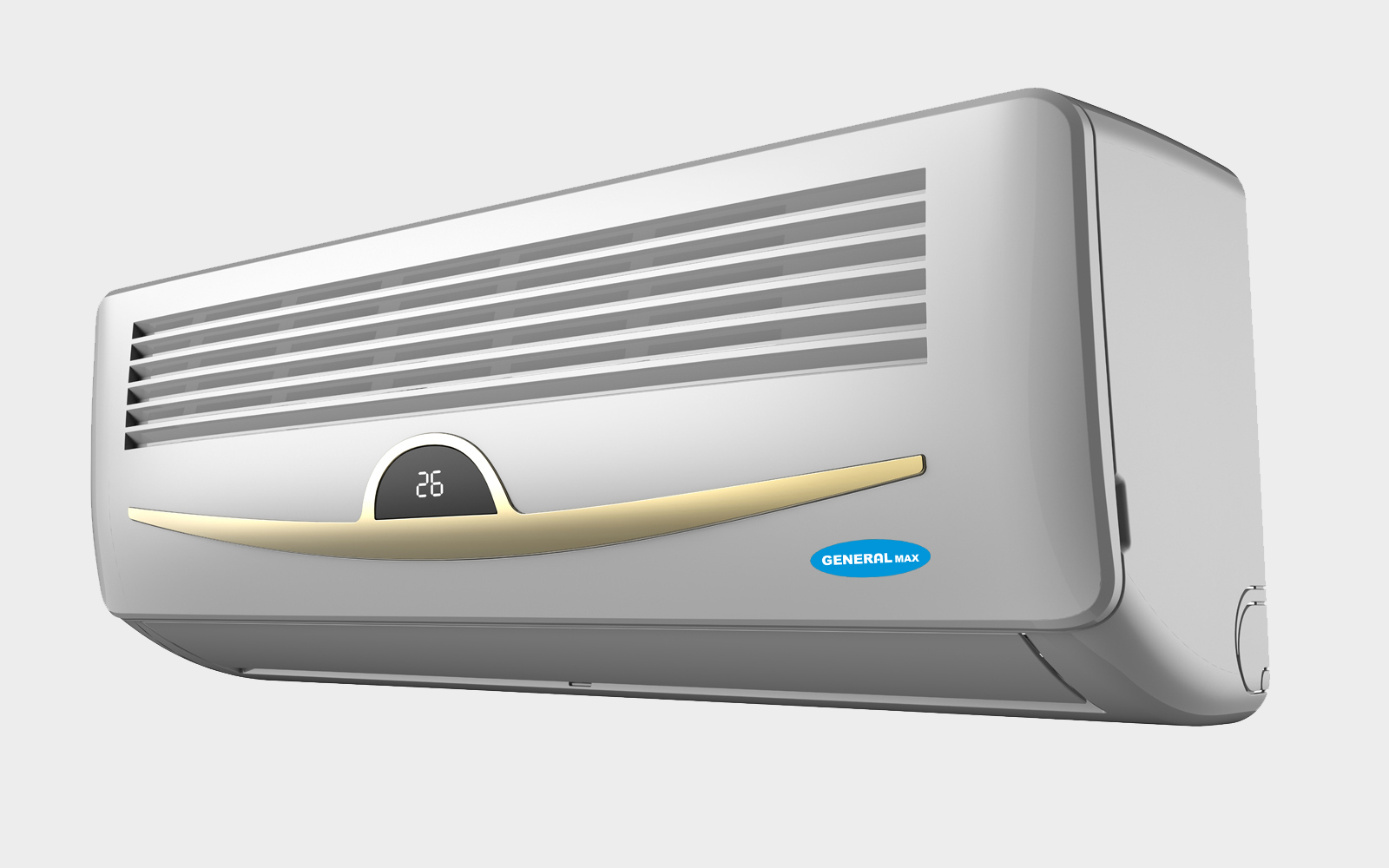

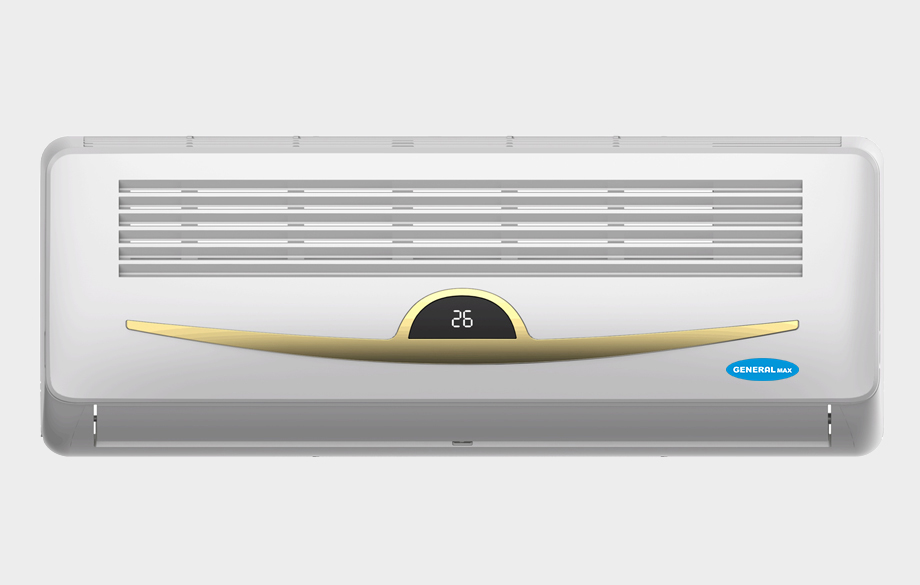

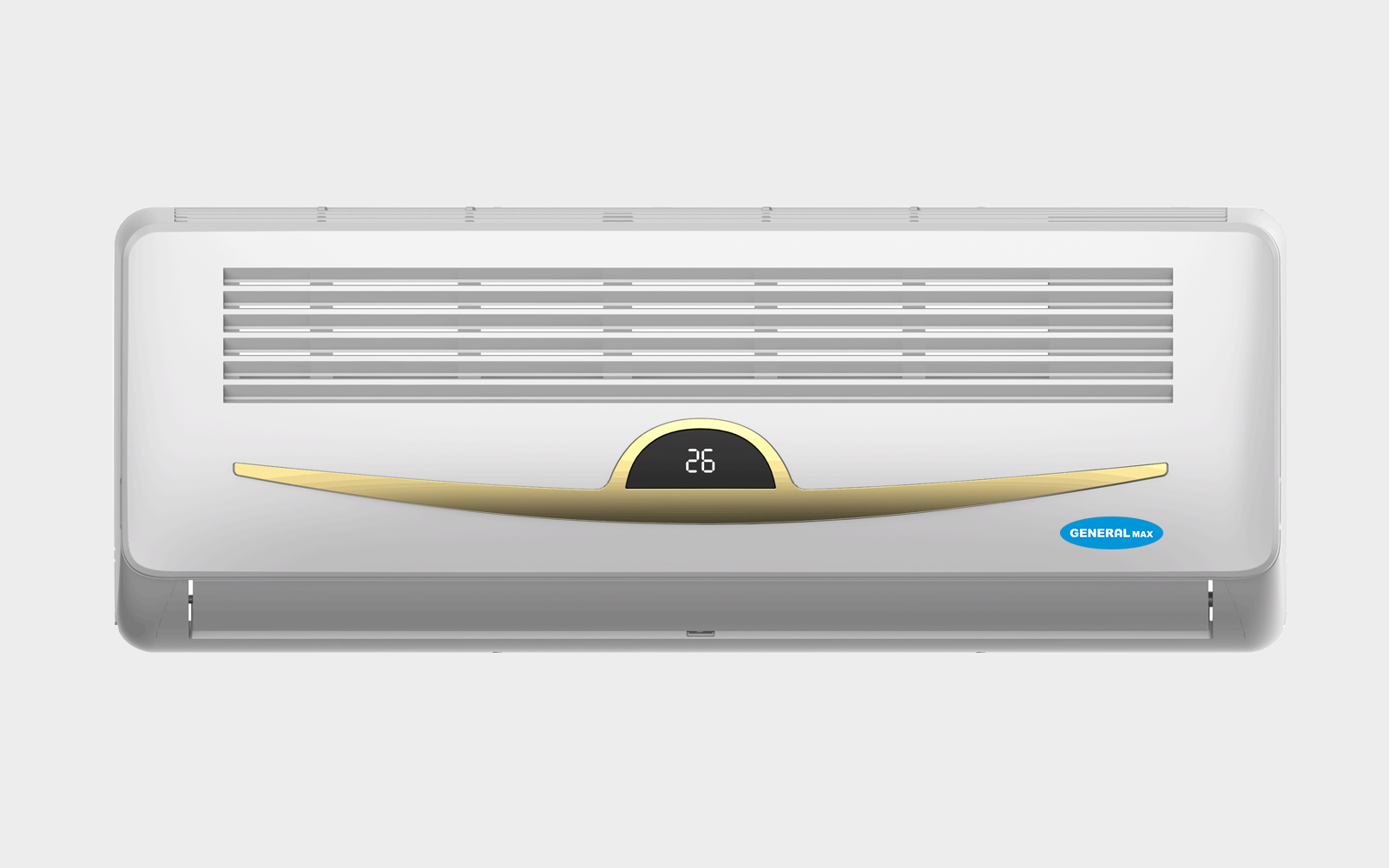

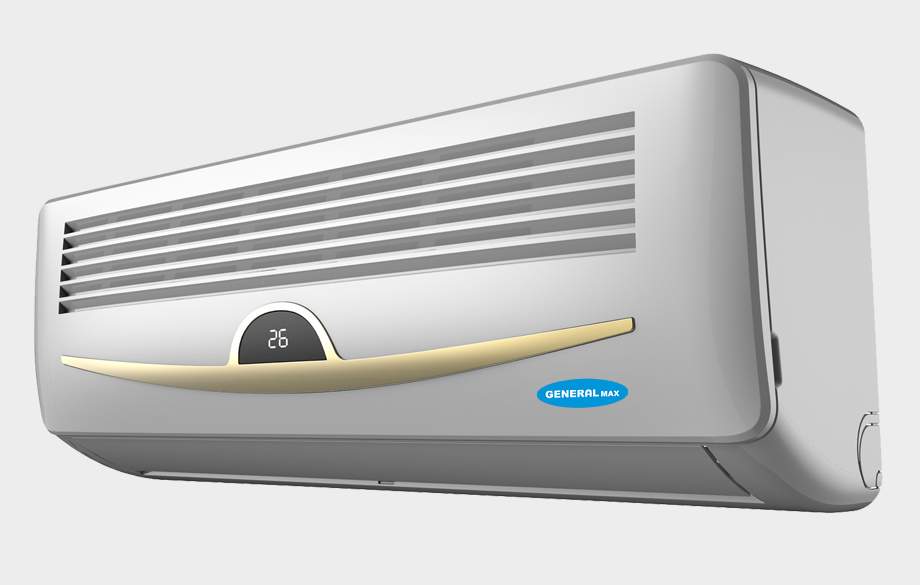

Artcool Plus R22

Rated Capacity, Cooling	12000 BTU
Rated Capacity, Heating	12500 BTU
Rated Running Current, Cooling	5.5 A
Rated Running Current, Heating	4.5 A
Max. Input Power	1700 W
Max. Input Current	9.5 A
EER Cooling	2.25 W/W
COP Heating	3 W/W
Power Supply Source V/Hz	220～240V-50Hz
Refrigerant	R22
Refrigerant Charged	630 g
Max. Discharge Pressure	2.8 Mpa
Max. Suction Pressure	0.8 Mpa
Air Flow Volume	600 m3/h
Indoor Unit Noise Power	40 dB（A)
Outdoor Unit Noise Power	52 dB（A)
Indoor Unit Weight （Net)	7 Kg

Outdoor Unit Weight (Net)	27 Kg
Indoor Evaporator Bend	3
Indoor Evaporator Row	2
Indoor Evaporator Pipe Diameter	7*0.24 mm
Indoor Fan Motor	YYK18-4B
Indoor Net Dimension	750285200 mm
Indoor Packing Dimension	820347277 mm
Liquid Valve	Φ6.35*0.5 mm
Gas Valve	Φ9.52*0.6 mm
Outdoor Compressor Brand	LANDA
Outdoor Compressor Model	QX-B193
Outdoor Fan Motor	YDK25-6
Outdoor Condenser Pipe Diameter	7*0.24 mm
Outdoor Condenser Row	1
Outdoor Net Dimension	700500225 mm
Outdoor Packing Dimension	820330550 mm
Container Loading 40HC	290 Units

Rated Capacity, Cooling	18000 BTU
Rated Capacity, Heating	18400 BTU
Rated Running Current, Cooling	8 A
Rated Running Current, Heating	7 A
Max. Input Power	2600 W
Max. Input Current	13 A
EER Cooling	2.21 W/W
COP Heating	2.73 W/W
Power Supply Source V/Hz	220～240V-50Hz
Refrigerant	R22
Refrigerant Charged	980 g
Max. Discharge Pressure	2.8 Mpa
Max. Suction Pressure	0.8 Mpa
Air Flow Volume	850 m3/h
Indoor Unit Noise Power	42 dB（A)
Outdoor Unit Noise Power	55 dB（A)
Indoor Unit Weight （Net)	12 Kg

Outdoor Unit Weight (Net)	38 Kg
Indoor Evaporator Bend	3
Indoor Evaporator Row	2
Indoor Evaporator Pipe Diameter	7*0.24 mm
Indoor Fan Motor	YYK25-4D
Indoor Net Dimension	900310225 mm
Indoor Packing Dimension	970382302 mm
Liquid Valve	Φ6.35*0.5 mm
Gas Valve	Φ12.7*0.7 mm
Outdoor Compressor Brand	HIGHLY
Outdoor Compressor Model	SL310
Outdoor Fan Motor	YDK31-6A
Outdoor Condenser Pipe Diameter	9.52*0.27 mm
Outdoor Condenser Row	1
Outdoor Net Dimension	802535298 mm
Outdoor Packing Dimension	920400620 mm
Container Loading 40HC	195 Units

Rated Capacity, Cooling	24000 BTU
Rated Capacity, Heating	24100 BTU
Rated Running Current, Cooling	10 A
Rated Running Current, Heating	9.3 A
Max. Input Power	3200 W
Max. Input Current	17 A
EER Cooling	2.75 W/W
COP Heating	3.05 W/W
Power Supply Source V/Hz	220～240V-50Hz
Refrigerant	R22
Refrigerant Charged	1600 g
Max. Discharge Pressure	2.8 Mpa
Max. Suction Pressure	0.8 Mpa
Air Flow Volume	1250 m3/h
Indoor unit Noise Power	44 dB（A)
Outdoor Unit Noise Power	57 dB（A)
Indoor Unit Weight （Net)	16 Kg

Outdoor Unit Weight (Net)	47 Kg
Indoor Evaporator Bend	3
Indoor Evaporator Row	2
Indoor Evaporator Pipe Diameter	7*0.24 mm
Indoor Fan Motor	YYK50-4
Indoor Net Dimension	1082330233 mm
Indoor Packing Dimension	1155397312 mm
Liquid Valve	Φ6.35*0.5 mm
Gas Valve	Φ15.88*0.75 mm
Outdoor Compressor Brand	GMCC
Outdoor Compressor Model	PH370
Outdoor Fan Motor	YDK69-6A
Outdoor Condenser Pipe Diameter	7*0.24 mm
Outdoor Condenser Row	2
Outdoor Net Dimension	800690300 mm
Outdoor Packing Dimension	935415760 mm
Container Loading 40HC	150 Units

Rated Capacity, Cooling	28900 BTU
Rated Capacity, Heating	30000 BTU
Rated Running Current, Cooling	11.4 A
Rated Running Current, Heating	11 A
Max. Input Power	3700 W
Max. Input Current	19 A
EER Cooling	2.58 W/W
COP Heating	2.79 W/W
Power Supply Source V/Hz	220～240V-50Hz
Refrigerant	R22
Refrigerant Charged	1950 g
Max. Discharge Pressure	3.4 Mpa
Max. Suction Pressure	0.8 Mpa
Air Flow Volume	1250 m3/h
Indoor unit Noise Power	46 dB（A)
Outdoor Unit Noise Power	58 dB（A)
Indoor Unit Weight （Net)	16 Kg

Outdoor Unit Weight (Net)	55 Kg
Indoor Evaporator Bend	3
Indoor Evaporator Row	2
Indoor Evaporator Pipe Diameter	7*0.24 mm
Indoor Fan Motor	YYK50-4
Indoor Net Dimension	1082330233 mm
Indoor Packing Dimension	1155397312 mm
Liquid Valve	Φ6.35*0.5 mm
Gas Valve	Φ15.88*0.75 mm
Outdoor Compressor Brand	HITACHI
Outdoor Compressor Model	SH417
Outdoor Fan Motor	YDK86-6B
Outdoor Condenser Pipe Diameter	7*0.24 mm
Outdoor Condenser Row	2
Outdoor Net Dimension	900343681 mm
Outdoor Packing Dimension	1020430770 mm
Container Loading 40HC	135 Units

Super-MD R410A

Power Supply V,Ph,Hz	220-240V, 1Ph, 50Hz
Cooling , Capacity	12000 BTU/h
Cooling , Input	1252 W
Cooling , Rated Current	5.7 A
Cooling , EER	2.81 W/W
Heating , Capacity	13000 BTU/h
Heating , Input	1245 W
Heating , Rated Current	5.7 A
Heating , COP	3.06 W/W
Max. Input Consumption	1600 W
Max. Current	9.5 A
Starting current	25 A
Compressor , Model	ASM140V1VDZ
Compressor , Type	ROTARY
Compressor , Brand	GMCC
Compressor , Capacity	13682 BTU/h
Compressor , Input	940 W
Compressor , Rated Current(RLA)	4.3 A
Compressor , Locked Rotor Amp(LRA)	25 A
Compressor , Thermal Protector	HPA-522
Compressor , Thermal Protector Position	INTERNAL
Compressor , Capacitor	35 uF
Compressor , Refrigerant oil/oil Charge	ESTER OIL VG74/350 ml
Indoor Fan Motor , Model	YKFG-13-4-38L
Indoor Fan Motor , Input	40 W
Indoor Fan Motor , Capacitor	1.2 uF
Indoor Fan Motor , Speed (Hi/Mi/Lo)	1150/950/800 r/min
Indoor Coil , Number of Rows	2
Indoor Coil , Tube pitch(a)x row pitch(b)	19.5x11.6 mm
Indoor Coil , Fin spacing	1.2 mm
Indoor Coil , Fin type (code)	Hydrophilic Aluminium
Indoor Coil , Tube Outside dia.and Type	Φ5,Innergroove Tube mm
Indoor Coil , Coil Length x Height x Width	595x273x23.2 mm
Indoor Coil , Number of Circuits	4
Indoor Air Flow (Hi/Mi/Lo)	403/320/292 m3/h
Indoor Noise Level (Hi/Mi/Lo)	41.5/36.5/31 dB(A)

Indoor Unit , Dimension(WxDxH)	805x194x285 mm
Indoor Unit , Packing(WxDxH)	805x194x285 mm
Indoor Unit , Net Weight	8.1 Kg
Indoor Unit , Gross Weight	10.3 Kg
Outdoor Fan Motor , Model	YKT-32-6-203L
Outdoor Fan Motor , Input	72.5 W
Outdoor Fan Motor , Capacitor	2 uF
Outdoor Fan Motor , Speed	850 r/min
Outdoor Coil , Number of Rows	1
Outdoor Coil , Tube pitch(a)x row pitch(b)	21x13.37 mm
Outdoor Coil , Fin spacing	1.2 mm
Outdoor Coil , Fin type (code)	Hydrophilic Aluminium
Outdoor Coil , Tube Outside dia.and Type	Φ7,Innergroove Tube mm
Outdoor Coil , Coil Length x Height x Width	680x504x13.37 mm
Outdoor Coil , Number of Circuits	2
Outdoor Noise Level	57 dB(A)
Outdoor Unit , Dimension(WxDxH)	773x287x552 mm
Outdoor Unit , Packing(WxDxH)	815x325x615 mm
Outdoor Unit , Net Weight	27.6 Kg
Outdoor Unit , Gross Weight	29.9 Kg
Refrigerant Type	R410A/720 g
Design Pressure	4.2/1.5 MPa
Refrigerant piping , Liquid Side/ Gas Side	Φ6.35/Φ12.7(1/4"/1/2") mm(inch)
Refrigerant piping , Max. Refrigerant Pipe Length	20 m
Refrigerant piping , Max. Difference in Level	8 m
Connection Wiring	1.5x3+0.75x2
Plug Type	1.5x3/VDE
Thermostat Type	Remote Control
Operation Temperature	17~30 ℃
Room temperature , Indoor(Cooling/Heating)	17～32/0～30 ℃
Room temperature , Outdoor(Cooling/Heating)	18～43/-7～24 ℃
Application area (Cooling Standard)	15-21 m2
Container Loading 20'feet	115 Units
Container Loading 40'feet	240 Units
Container Loading 40'HQ	270 Units

Power Supply V,Ph,Hz	220-240V, 1Ph, 50Hz
Cooling , Capacity	17500 BTU/h
Cooling , Input	1649 W
Cooling , Rated Current	7.5 A
Cooling , EER	3.11 W/W
Heating , Capacity	17000 BTU/h
Heating , Input	1552 W
Heating , Rated Current	7.1 A
Heating , COP	3.21 W/W
Max. Input Consumption	2200 W
Max. Current	11.5 A
Starting current	36.3 A
Compressor , Model	PA190M2AS-4KTL5
Compressor , Type	ROTARY
Compressor , Brand	GMCC
Compressor , Capacity	18630 BTU/h
Compressor , Input	1295 W
Compressor , Rated Current(RLA)	5.90 A
Compressor , Locked Rotor Amp(LRA)	36.3 A
Compressor , Thermal Protector	/
Compressor , Thermal Protector Position	INTERNAL
Compressor , Capacitor	45 uF
Compressor , Refrigerant oil/oil Charge	ESTER OIL VG74/620 ml
Indoor Fan Motor , Model	YKFG-25-4-6-8
Indoor Fan Motor , Input	55.00 W
Indoor Fan Motor , Capacitor	2 uF
Indoor Fan Motor , Speed (Hi/Mi/Lo)	1180/1000/850 r/min
Indoor Coil , Number of Rows	2
Indoor Coil , Tube pitch(a)x row pitch(b)	21x13.37 mm
Indoor Coil , Fin spacing	1.2 mm
Indoor Coil , Fin type (code)	Hydrophilic Aluminium
Indoor Coil , Tube Outside dia.and Type	Φ7,Innergroove Tube mm
Indoor Coil , Coil Length x Height x Width	750x294x26.74 mm
Indoor Coil , Number of Circuits	3
Indoor Air Flow (Hi/Mi/Lo)	850/685/556 m3/h
Indoor Noise Level (Hi/Mi/Lo)	44.4/39.4/34.1 dB(A)

Indoor Unit , Dimension(WxDxH)	957x213x302 mm
Indoor Unit , Packing(WxDxH)	1035x295x380 mm
Indoor Unit , Net Weight	10.6 Kg
Indoor Unit , Gross Weight	14.1 Kg
Outdoor Fan Motor , Model	YKT-48-6-206-6
Outdoor Fan Motor , Input	103.8 W
Outdoor Fan Motor , Capacitor	3 uF
Outdoor Fan Motor , Speed	890 r/min
Outdoor Coil , Number of Rows	2
Outdoor Coil , Tube pitch(a)x row pitch(b)	21x13.37 mm
Outdoor Coil , Fin spacing	1.4 mm
Outdoor Coil , Fin type (code)	Hydrophilic Aluminium
Outdoor Coil , Tube Outside dia.and Type	Φ7,Innergroove Tube mm
Outdoor Coil , Coil Length x Height x Width	755x504x26.74+685x504x26.74 mm
Outdoor Coil , Number of Circuits	4
Outdoor Noise Level	60.1 dB(A)
Outdoor Unit , Dimension(WxDxH)	770x300x555 mm
Outdoor Unit , Packing(WxDxH)	900x345x615 mm
Outdoor Unit , Net Weight	37.7 Kg
Outdoor Unit , Gross Weight	40.7 Kg
Refrigerant Type	R410A/1200 g
Design Pressure	4.2/1.5 MPa
Refrigerant piping , Liquid Side/ Gas Side	Φ6.35/Φ12.7(1/4"/1/2") mm(inch)
Refrigerant piping , Max. Refrigerant Pipe Length	20 m
Refrigerant piping , Max. Difference in Level	8 m
Connection Wiring	2.5x3(Optional)
Plug Type	1.5x3/no-plug
Thermostat Type	Remote Control
Operation Temperature	17~30 ℃
Room temperature , Indoor(Cooling/Heating)	17～32/0～30 ℃
Room temperature , Outdoor(Cooling/Heating)	18～43/-7～24 ℃
Application area (Cooling Standard)	22-32 m2
Container Loading 20'feet	90 Units
Container Loading 40'feet	185 Units
Container Loading 40'HQ	208 Units

Power Supply V,Ph,Hz	220-240V, 1Ph, 50Hz
Cooling , Capacity	24000 BTU/h
Cooling , Input	2503 W
Cooling , Rated Current	10.9 A
Cooling , EER	2.81 W/W
Heating , Capacity	25000 BTU/h
Heating , Input	2280 W
Heating , Rated Current	9.9 A
Heating , COP	3.21 W/W
Max. Input Consumption	4000 W
Max. Current	20 A
Starting current	55 A
Compressor , Model	PA280G2CS-4MTL
Compressor , Type	ROTARY
Compressor , Brand	GMCC
Compressor , Capacity	27755 BTU/h
Compressor , Input	1920 W
Compressor , Rated Current(RLA)	8.9 A
Compressor , Locked Rotor Amp(LRA)	55 A
Compressor , Thermal Protector	/
Compressor , Thermal Protector Position	INTERNAL
Compressor , Capacitor	60 uF
Compressor , Refrigerant oil/oil Charge	ESTER OIL VG74/850 ml
Indoor Fan Motor , Model	YKFG-45-4-22
Indoor Fan Motor , Input	77 W
Indoor Fan Motor , Capacitor	3.0 uF
Indoor Fan Motor , Speed (Hi/Mi/Lo)	1200/1000/850 r/min
Indoor Coil , Number of Rows	2
Indoor Coil , Tube pitch(a)x row pitch(b)	21x13.37 mm
Indoor Coil , Fin spacing	1.2 mm
Indoor Coil , Fin type (code)	Hydrophilic Aluminium
Indoor Coil , Tube Outside dia.and Type	Φ7,Innergroove Tube mm
Indoor Coil , Coil Length x Height x Width	780x315x26.74 mm
Indoor Coil , Number of Circuits	4
Indoor Air Flow (Hi/Mi/Lo)	1000/796/640 m3/h
Indoor Noise Level (Hi/Mi/Lo)	47/40/34 dB(A)

Indoor Unit , Dimension(WxDxH)	1040×220×327 mm
Indoor Unit , Packing(WxDxH)	1120x310x405 mm
Indoor Unit , Net Weight	12.7 Kg
Indoor Unit , Gross Weight	16.4 Kg
Outdoor Fan Motor , Model	YKT-75-6-200L-8
Outdoor Fan Motor , Input	144 W
Outdoor Fan Motor , Capacitor	3 uF
Outdoor Fan Motor , Speed	860 r/min
Outdoor Coil , Number of Rows	2
Outdoor Coil , Tube pitch(a)x row pitch(b)	21x13.37 mm
Outdoor Coil , Fin spacing	1.4 mm
Outdoor Coil , Fin type (code)	Hydrophilic Aluminium
Outdoor Coil , Tube Outside dia.and Type	Φ5,Innergroove Tube mm
Outdoor Coil , Coil Length x Height x Width	760x630x26.74 mm
Outdoor Coil , Number of Circuits	6
Outdoor Noise Level	60 dB(A)
Outdoor Unit , Dimension(WxDxH)	845x363x702 mm
Outdoor Unit , Packing(WxDxH)	965x395x755 mm
Outdoor Unit , Net Weight	48.8 Kg
Outdoor Unit , Gross Weight	52 Kg
Refrigerant Type	R410A/1750 g
Design Pressure	4.2/1.5 MPa
Refrigerant piping , Liquid Side/ Gas Side	Φ9.52/Φ16(3/8"/5/8") mm(inch)
Refrigerant piping , Max. Refrigerant Pipe Length	25 m
Refrigerant piping , Max. Difference in Level	10 m
Connection Wiring	4x1.0(Optional)
Plug Type	3x2.5/no-plug
Thermostat Type	Remote Control
Operation Temperature	17~30 ℃
Room temperature , Indoor(Cooling/Heating)	17～32/0～30 ℃
Room temperature , Outdoor(Cooling/Heating)	18～43/-7～24 ℃
Application area (Cooling Standard)	32-47 m2
Container Loading 20'feet	65 Units
Container Loading 40'feet	140 Units
Container Loading 40'HQ	152 Units

Power Supply V,Ph,Hz	220-240V, 1Ph, 50Hz
Cooling , Capacity	17600 BTU/h
Cooling , Input	2618 W
Cooling , Rated Current	11.5 A
Cooling , EER	3.09 W/W
Heating , Capacity	28000 BTU/h
Heating , Input	2428 W
Heating , Rated Current	10.6 A
Heating , COP	3.38 W/W
Max. Input Consumption	4000 W
Max. Current	20.0 A
Starting current	55 A
Compressor , Model	PA280G2CS-4MTL
Compressor , Type	ROTARY
Compressor , Brand	GMCC
Compressor , Capacity	27756 BTU/h
Compressor , Input	1920 W
Compressor , Rated Current(RLA)	8.9 A
Compressor , Locked Rotor Amp(LRA)	55 A
Compressor , Thermal Protector	/
Compressor , Thermal Protector Position	INTERNAL
Compressor , Capacitor	60 uF
Compressor , Refrigerant oil/oil Charge	ESTER OIL VG74/750 ml
Indoor Fan Motor , Model	YKFG-45-4-22
Indoor Fan Motor , Input	77 W
Indoor Fan Motor , Capacitor	3.0 uF
Indoor Fan Motor , Speed (Hi/Mi/Lo)	1120/1020/950 r/min
Indoor Coil , Number of Rows	2
Indoor Coil , Tube pitch(a)x row pitch(b)	21x13.37 mm
Indoor Coil , Fin spacing	1.3 mm
Indoor Coil , Fin type (code)	Hydrophilic Aluminium
Indoor Coil , Tube Outside dia.and Type	Φ7,Innergroove Tube mm
Indoor Coil , Coil Length x Height x Width	820x336x26.74 mm
Indoor Coil , Number of Circuits	4
Indoor Air Flow (Hi/Mi/Lo)	1060/947/870 m3/h
Indoor Noise Level (Hi/Mi/Lo)	46.5/43/39.5 dB(A)

Indoor Unit , Dimension(WxDxH)	1080x226x335 mm
Indoor Unit , Packing(WxDxH)	1155x415x315 mm
Indoor Unit , Net Weight	12.7 Kg
Indoor Unit , Gross Weight	16.1 Kg
Outdoor Fan Motor , Model	YKT-75-6-200L-8
Outdoor Fan Motor , Input	144 W
Outdoor Fan Motor , Capacitor	3.0 uF
Outdoor Fan Motor , Speed	860 r/min
Outdoor Coil , Number of Rows	2
Outdoor Coil , Tube pitch(a)x row pitch(b)	21x13.37 mm
Outdoor Coil , Fin spacing	1.4 mm
Outdoor Coil , Fin type (code)	Hydrophilic Aluminium
Outdoor Coil , Tube Outside dia.and Type	Φ7,Innergroove Tube mm
Outdoor Coil , Coil Length x Height x Width	760x651x26.74 mm
Outdoor Coil , Number of Circuits	6
Outdoor Noise Level	59 dB(A)
Outdoor Unit , Dimension(WxDxH)	845x363x702 mm
Outdoor Unit , Packing(WxDxH)	965x395x765 mm
Outdoor Unit , Net Weight	49 Kg
Outdoor Unit , Gross Weight	52.0 Kg
Refrigerant Type	R410A/1800 g
Design Pressure	4.2/1.5 MPa
Refrigerant piping , Liquid Side/ Gas Side	Φ9.52/Φ15.9(3/8"/5/8") mm(inch)
Refrigerant piping , Max. Refrigerant Pipe Length	25 m
Refrigerant piping , Max. Difference in Level	10 m
Connection Wiring	4x1.0(Optional)
Plug Type	3x2.5/no-plug
Thermostat Type	Remote Control
Operation Temperature	17~30 ℃
Room temperature , Indoor(Cooling/Heating)	17～32/0～30 ℃
Room temperature , Outdoor(Cooling/Heating)	18～43/-7～24 ℃
Application area (Cooling Standard)	32-47 m2
Container Loading 20'feet	66 Units
Container Loading 40'feet	138 Units
Container Loading 40'HQ	152 Units

Digital-MD R22

Power Supply V,Ph,Hz	220-240V, 1Ph, 50Hz
Cooling , Capacity	10765 BTU/h
Cooling , Input	1209 W
Cooling , Rated Current	5.5 A
Cooling , EER	2.61 W/W
Heating , Capacity	11900 BTU/h
Heating , Input	1159 W
Heating , Rated Current	5.3 A
Heating , COP	3.01 W/W
Max. Input Consumption	1700 W
Max. Current	8 A
Compressor , Model	HSM215V2UDZ
Compressor , Type	ROTARY
Compressor , Brand	GMCC
Compressor , Capacity	12795 BTU/h
Compressor , Input	1190 W
Compressor , Rated Current(RLA)	5.50 A
Compressor , Thermal Protector Position	INTERNAL
Compressor , Capacitor	35 uF
Compressor , Refrigerant oil/oil Charge	SUNISO 4GSD OR A TMOS NM56EP/350 ml
Indoor Fan Motor , Model	YKFG-13-4-38L
Indoor Fan Motor , Input	40 W
Indoor Fan Motor , Capacitor	1.2 uF
Indoor Fan Motor , Speed (Hi/Mi/Lo)	1200/1000/900 r/min
Indoor Coil , Number of Rows	2
Indoor Coil , Tube pitch(a)x row pitch(b)	21x13.37 mm
Indoor Coil , Fin spacing	1.2 mm
Indoor Coil , Fin type (code)	Hydrophilic Aluminium
Indoor Coil , Tube Outside dia.and Type	Φ7,Innergroove Tube mm
Indoor Coil , Coil Length x Height x Width	510x84x13.37+510x105x26.74+510x84x26.74 mm
Indoor Coil , Number of Circuits	2

Indoor Air Flow (Hi/Mi/Lo)	482/390/344 m3/h
Indoor Noise Level (Hi/Mi/Lo)	42/36/34 dB(A)
Indoor Unit , Dimension(WxDxH)	715x194x285 mm
Indoor Unit , Packing(WxDxH)	780x270x360 mm
Indoor Unit , Net Weight	7.6 Kg
Indoor Unit , Gross Weight	9.7 Kg
Outdoor Fan Motor , Model	YKT-32-6-203L
Outdoor Fan Motor , Input	72.5 W
Outdoor Fan Motor , Capacitor	2 uF
Outdoor Fan Motor , Speed	850 r/min
Outdoor Coil , Number of Rows	1
Outdoor Coil , Tube pitch(a)x row pitch(b)	21x22 mm
Outdoor Coil , Fin spacing	1.2 mm
Outdoor Coil , Fin type (code)	Hydrophilic Aluminium
Outdoor Coil , Tube Outside dia.and Type	Φ7,Innergroove Tube mm
Outdoor Coil , Coil Length x Height x Width	680x504x22 mm
Outdoor Coil , Number of Circuits	2
Outdoor Noise Level	56 dB(A)
Outdoor Unit , Dimension(WxDxH)	700x275x550 mm
Outdoor Unit , Packing(WxDxH)	815x325x615 mm
Outdoor Unit , Net Weight	26.8 Kg
Outdoor Unit , Gross Weight	29.1 Kg
Refrigerant Type	R22/680 g
Design Pressure	2.6/1.0 MPa
Refrigerant piping , Liquid Side/ Gas Side	6.35mm(1/4in)/9.52mm(3/8in) mm(inch)
Refrigerant piping , Max. Refrigerant Pipe Length	10 m
Refrigerant piping , Max. Difference in Level	5 m
Connection Wiring	3x1.5+2x0.75(Optional)
Plug Type	1.5x3/VDE
Thermostat Type	Remote Control
Operation Temperature	17~30 ℃
Room temperature , Indoor(Cooling/Heating)	17～32/0～30 ℃
Room temperature , Outdoor(Cooling/Heating)	18～43/-7～24 ℃
Application area (Cooling Standard)	14-21 m2
Container Loading 20'feet	117 Units
Container Loading 40'feet	235 Units
Container Loading 40'HQ	280 Units

Power Supply V,Ph,Hz	220-240V, 1Ph, 50Hz
Cooling , Capacity	17500 BTU/h
Cooling , Input	1965 W
Cooling , Rated Current	9.0 A
Cooling , EER	2.61 W/W
Heating , Capacity	18000 BTU/h
Heating , Input	1752 W
Heating , Rated Current	7.6 A
Heating , COP	3.01 W/W
Max. Input Consumption	2600 W
Max. Current	14 A
Compressor , Model	PH290M2C-4FT6
Compressor , Type	ROTARY
Compressor , Brand	GMCC
Compressor , Capacity	17401 BTU/h
Compressor , Input	1655 W
Compressor , Rated Current(RLA)	8.00 A
Compressor , Thermal Protector Position	INTERNAL
Compressor , Capacitor	35 uF
Compressor , Refrigerant oil/oil Charge	SUNISO 4GSD/420 ml
Indoor Fan Motor , Model	YKFG-25-4-6
Indoor Fan Motor , Input	55.00 W
Indoor Fan Motor , Capacitor	1.5 uF
Indoor Fan Motor , Speed (Hi/Mi/Lo)	1180/1000/850 r/min
Indoor Coil , Number of Rows	2
Indoor Coil , Tube pitch(a)x row pitch(b)	21x13.37 mm
Indoor Coil , Fin spacing	1.2 mm
Indoor Coil , Fin type (code)	Hydrophilic Aluminium
Indoor Coil , Tube Outside dia.and Type	Φ7,Innergroove Tube mm
Indoor Coil , Coil Length x Height x Width	750x294x26.74 mm
Indoor Coil , Number of Circuits	3

Indoor Air Flow (Hi/Mi/Lo)	751/607/488 m3/h
Indoor Noise Level (Hi/Mi/Lo)	43.9/38.8/33.8 dB(A)
Indoor Unit , Dimension(WxDxH)	957x213x302 mm
Indoor Unit , Packing(WxDxH)	1035x295x380 mm
Indoor Unit , Net Weight	10.6 Kg
Indoor Unit , Gross Weight	14.2 Kg
Outdoor Fan Motor , Model	YKT-48-6-206-6
Outdoor Fan Motor , Input	103.8 W
Outdoor Fan Motor , Capacitor	3 uF
Outdoor Fan Motor , Speed	890 r/min
Outdoor Coil , Number of Rows	1.5
Outdoor Coil , Tube pitch(a)x row pitch(b)	21x13.37 mm
Outdoor Coil , Fin spacing	1.4 mm
Outdoor Coil , Fin type (code)	Hydrophilic Aluminium
Outdoor Coil , Tube Outside dia.and Type	Φ7,Innergroove Tube mm
Outdoor Coil , Coil Length x Height x Width	475x504x13.37+755x504x13.37 mm
Outdoor Coil , Number of Circuits	4
Outdoor Noise Level	58.2 dB(A)
Outdoor Unit , Dimension(WxDxH)	770x300x555 mm
Outdoor Unit , Packing(WxDxH)	900x348x615 mm
Outdoor Unit , Net Weight	35.7 Kg
Outdoor Unit , Gross Weight	38.8 Kg
Refrigerant Type	R22/1250 g
Design Pressure	2.6/1.0 MPa
Refrigerant piping , Liquid Side/ Gas Side	Φ6.35/Φ12.7(1/4"/1/2") mm(inch)
Refrigerant piping , Max. Refrigerant Pipe Length	10 m
Refrigerant piping , Max. Difference in Level	5 m
Connection Wiring	3x2.5+2x0.75(Optional)
Plug Type	1.5x3/no-plug
Thermostat Type	Remote Control
Operation Temperature	17~30 ℃
Room temperature , Indoor(Cooling/Heating)	17～32/0～30 ℃
Room temperature , Outdoor(Cooling/Heating)	18～43/-7～24 ℃
Application area (Cooling Standard)	23-33 m2
Container Loading 20'feet	90 Units
Container Loading 40'feet	185 Units
Container Loading 40'HQ	208 Units

Power Supply V,Ph,Hz	220-240V, 1Ph, 50Hz
Cooling , Capacity	22000 BTU/h
Cooling , Input	2470 W
Cooling , Rated Current	10.7 A
Cooling , EER	2.61 W/W
Heating , Capacity	24000 BTU/h
Heating , Input	2337 W
Heating , Rated Current	10.7 A
Heating , COP	3.01 W/W
Max. Input Consumption	3000 W
Max. Current	16 A
Compressor , Model	PH370G2C-4MT
Compressor , Type	ROTARY
Compressor , Brand	GMCC
Compressor , Capacity	22724 BTU/h
Compressor , Input	2040 W
Compressor , Rated Current(RLA)	9.40 A
Compressor , Thermal Protector Position	INTERNAL
Compressor , Capacitor	55 uF
Compressor , Refrigerant oil/oil Charge	UNISO 4GS/640 ml
Indoor Fan Motor , Model	YKFG-45-4-22
Indoor Fan Motor , Input	77 W
Indoor Fan Motor , Capacitor	3.0 uF
Indoor Fan Motor , Speed (Hi/Mi/Lo)	1200/1000/950 r/min
Indoor Coil , Number of Rows	2
Indoor Coil , Tube pitch(a)x row pitch(b)	21x13.37 mm
Indoor Coil , Fin spacing	1.3 mm
Indoor Coil , Fin type (code)	Hydrophilic Aluminium
Indoor Coil , Tube Outside dia.and Type	Φ7,Innergroove Tube mm
Indoor Coil , Coil Length x Height x Width	780x315x26.74 mm
Indoor Coil , Number of Circuits	4

Indoor Air Flow (Hi/Mi/Lo)	1066/956/764 m3/h
Indoor Noise Level (Hi/Mi/Lo)	46.4/43.9/38.8 dB(A)
Indoor Unit , Dimension(WxDxH)	1040×220×327 mm
Indoor Unit , Packing(WxDxH)	1120x310x405 mm
Indoor Unit , Net Weight	13.4 Kg
Indoor Unit , Gross Weight	16.8 Kg
Outdoor Fan Motor , Model	YKT-75-6-200L
Outdoor Fan Motor , Input	144 W
Outdoor Fan Motor , Capacitor	3 uF
Outdoor Fan Motor , Speed	860 r/min
Outdoor Coil , Number of Rows	2
Outdoor Coil , Tube pitch(a)x row pitch(b)	21x13.37 mm
Outdoor Coil , Fin spacing	1.4 mm
Outdoor Coil , Fin type (code)	Hydrophilic Aluminium
Outdoor Coil , Tube Outside dia.and Type	Φ7,Innergroove Tube mm
Outdoor Coil , Coil Length x Height x Width	760x651x26.74 mm
Outdoor Coil , Number of Circuits	3
Outdoor Noise Level	58.8 dB(A)
Outdoor Unit , Dimension(WxDxH)	845x363x702 mm
Outdoor Unit , Packing(WxDxH)	965x395x755 mm
Outdoor Unit , Net Weight	47.9 Kg
Outdoor Unit , Gross Weight	51.2 Kg
Refrigerant Type	R22/1700 g
Design Pressure	2.6/1.0 MPa
Refrigerant piping , Liquid Side/ Gas Side	Φ9.52/Φ15.9(3/8"/5/8") mm(inch)
Refrigerant piping , Max. Refrigerant Pipe Length	20 m
Refrigerant piping , Max. Difference in Level	10 m
Connection Wiring	4x1.0(Optional)
Plug Type	3x2.5/no-plug
Thermostat Type	Remote Control
Operation Temperature	17~30 ℃
Room temperature , Indoor(Cooling/Heating)	17～32/0～30 ℃
Room temperature , Outdoor(Cooling/Heating)	18～43/-7～24 ℃
Application area (Cooling Standard)	29-43 m2
Container Loading 20'feet	66 Units
Container Loading 40'feet	140 Units
Container Loading 40'HQ	154 Units

Power Supply V,Ph,Hz	220-240V, 1Ph, 50Hz
Cooling , Capacity	28000 BTU/h
Cooling , Input	3144 W
Cooling , Rated Current	13.9 A
Cooling , EER	2.61 W/W
Heating , Capacity	28500 BTU/h
Heating , Input	2775 W
Heating , Rated Current	12.3 A
Heating , COP	3.01 W/W
Max. Input Consumption	4000 W
Max. Current	20 A
Compressor , Model	PH465X3CS-4MTA
Compressor , Type	ROTARY
Compressor , Brand	GMCC
Compressor , Capacity	28064 BTU/h
Compressor , Input	2685 W
Compressor , Rated Current(RLA)	12.70 A
Compressor , Thermal Protector Position	INTERNAL
Compressor , Capacitor	55 uF
Compressor , Refrigerant oil/oil Charge	SUNISO 4GSD OR NM56E/1000 ml
Indoor Fan Motor , Model	YKFG-45-4-22
Indoor Fan Motor , Input	77 W
Indoor Fan Motor , Capacitor	3.0 uF
Indoor Fan Motor , Speed (Hi/Mi/Lo)	1280/1100/900 r/min
Indoor Coil , Number of Rows	2
Indoor Coil , Tube pitch(a)x row pitch(b)	21x13.37 mm
Indoor Coil , Fin spacing	1.3 mm
Indoor Coil , Fin type (code)	Hydrophilic Aluminium
Indoor Coil , Tube Outside dia.and Type	Φ7,Innergroove Tube mm
Indoor Coil , Coil Length x Height x Width	820x336x26.74 mm
Indoor Coil , Number of Circuits	4

Indoor Air Flow (Hi/Mi/Lo)	1095/954/876 m3/h
Indoor Noise Level (Hi/Mi/Lo)	48/44/42 dB(A)
Indoor Unit , Dimension(WxDxH)	1080x226x335 mm
Indoor Unit , Packing(WxDxH)	1155x415x315 mm
Indoor Unit , Net Weight	14 Kg
Indoor Unit , Gross Weight	17 Kg
Outdoor Fan Motor , Model	YKT-75-6-200L
Outdoor Fan Motor , Input	144 W
Outdoor Fan Motor , Capacitor	3 uF
Outdoor Fan Motor , Speed	860 r/min
Outdoor Coil , Number of Rows	2
Outdoor Coil , Tube pitch(a)x row pitch(b)	21x13.37 mm
Outdoor Coil , Fin spacing	1.2 mm
Outdoor Coil , Fin type (code)	Hydrophilic Aluminium
Outdoor Coil , Tube Outside dia.and Type	Φ7,Innergroove Tube mm
Outdoor Coil , Coil Length x Height x Width	730x651x26.74 mm
Outdoor Coil , Number of Circuits	6
Outdoor Noise Level	59 dB(A)
Outdoor Unit , Dimension(WxDxH)	845x363x702 mm
Outdoor Unit , Packing(WxDxH)	965x395x755 mm
Outdoor Unit , Net Weight	54.4 Kg
Outdoor Unit , Gross Weight	57.5 Kg
Refrigerant Type	R22/1800 g
Design Pressure	2.6/1.0 MPa
Refrigerant piping , Liquid Side/ Gas Side	Φ9.52/Φ15.9(3/8"/5/8") mm(inch)
Refrigerant piping , Max. Refrigerant Pipe Length	20 m
Refrigerant piping , Max. Difference in Level	10 m
Connection Wiring	4x1.0(Optional)
Plug Type	3x2.5/no-plug
Thermostat Type	Remote Control
Operation Temperature	17~30 ℃
Room temperature , Indoor(Cooling/Heating)	17～32/0～30 ℃
Room temperature , Outdoor(Cooling/Heating)	18～43/-7～24 ℃
Application area (Cooling Standard)	33-48 m2
Container Loading 20'feet	66 Units
Container Loading 40'feet	138 Units
Container Loading 40'HQ	152 Units

Window

Power Supply V,Ph,Hz	220-240V, 1Ph, 50Hz
Cooling (T1), Capacity	8800 BTU/h
Cooling (T1), Input	1000 W
Cooling (T1), Rated Current	4.5 A
Cooling (T1), EER	2.6 W/W
Cooling (T3), Capacity	/
Cooling (T3), Input	/
Cooling (T3), Rated Current	/
Cooling (T3), EER	/
Heating (T1), Capacity	/
Heating (T1), Input	/
Heating (T1), Rated Current	/
Heating (T1), COP	/
Moisture Removal	1 L/h
Rated Input Consumption	1500 W
Rated Current	8.0 A
Starting Current	19.8 A
Compressor , Model	PH160G1C-4DZDE
Compressor , Type	ROTARY
Compressor , Brand	GMCC
Compressor , Capacity	9331/9434 BTU/h
Compressor , Input	855/890 W
Compressor , Rated Current(RLA)	3.95/3.85 A
Compressor , Locked Rotor Amp(LRA)	19.8 A
Compressor , Thermal Protector	B160-135-241E
Compressor , Thermal Protector Position	EXTERNAL
Compressor , Capacitor	30 uF
Compressor , Refrigerant oil/oil Charge	SUNISO 4GSD/350
Indoor Fan Motor , Model	YKTS-60-4-2
Indoor Fan Motor , Input	113 W
Indoor Fan Motor , Output	60 W
Indoor Fan Motor , Capacitor	2.5 uF
Indoor Fan Motor , Speed (Hi/Mi/Lo)	1240/1140/1040 r/min

Indoor Coil , Number of Rows	3
Indoor Coil , Tube pitch(a)x row pitch(b)	21x13.37 mm
Indoor Coil , Fin spacing	1.2 mm
Indoor Coil , Fin type (code)	Hydrophilic Aluminium
Indoor Coil , Tube Outside dia.and Type	Φ7,Innergroove Tube mm
Indoor Coil , Coil Length x Height x Width	255x294x40.11 mm
Indoor Coil , Number of Circuits	2
Indoor Air Flow (Hi/Mi/Lo)	360/330/280 m3/h
Indoor Noise Level (Hi/Mi/Lo)	53/50/47 dB(A)
Outdoor Condenser , Number of Rows	2
Outdoor Coil , Tube pitch(a)x row pitch(b)	19.5x11.6 mm
Outdoor Condenser , Fin spacing	1.2 mm
Outdoor Condenser , Fin type (code)	UnHydrophilic Aluminium
Outdoor Condenser , Tube Outside dia.and Type	Φ5,Innergroove Tube mm
Outdoor Condenser , Coil Length x Height x Width	480x332x23.2 mm
Outdoor Condenser , Number of Circuits	2
Outdoor Side Noise Level (Hi)	61/59/57 dB(A)
Refrigerant Type	R22/0.3 Kg
Design Pressure	2.6/1.0 MPa
Plug Type	1.0x3/VDE
Control Type	Mechanical Control
Operation Temperature , Indoor(Cooling/Heating)	17～32/- ℃
Operation Temperature , Outdoor(Cooling/Heating)	18～43/- ℃
Application area (Cooling Standard)	12-17 m2
Dimension(WxDxH)	450x535x346 mm
Packing(WxDxH)	495x580x435 mm
Net Weight	27 Kg
Gross Weight	29.5 Kg
Container Loading 20'feet	220 Units
Container Loading 40'feet	480 Units
Container Loading 40'HQ	576 Units

Power Supply V,Ph,Hz	220-240V, 1Ph, 50Hz
Cooling (T1), Capacity	12000 BTU/h
Cooling (T1), Input	1300 W
Cooling (T1), Rated Current	5.8 A
Cooling (T1), EER	9.23 W/W
Cooling (T3), Capacity	10634 BTU/h
Cooling (T3), Input	1574 W
Cooling (T3), Rated Current	7.11 A
Cooling (T3), EER	6.76 W/W
Heating (T1), Capacity	/
Heating (T1), Input	/
Heating (T1), Rated Current	/
Heating (T1), COP	/
Moisture Removal	1.2 L/h
Rated Input Consumption	1800 W
Rated Current	8.8 A
Starting Current	33.6 A
Compressor , Model	PH210M2A-4FTS1
Compressor , Type	ROTARY
Compressor , Brand	GMCC
Compressor , Capacity	12760 BTU/h
Compressor , Input	1181 W
Compressor , Rated Current(RLA)	5.62 A
Compressor , Locked rotor Amp(LRA)	33.6 A
Compressor , Thermal Protector	/
Compressor , Thermal Protector Position	INTERNAL
Compressor , Capacitor	35 uF
Compressor , Refrigerant oil/oil Charge	SUNISO 4GSD/ATMOS NM56EP 440 ml
Indoor Fan Motor , Model	YKTS-40-6-7-2
Indoor Fan Motor , Input	99 W
Indoor Fan Motor , Output	40 W
Indoor Fan Motor , Capacitor	4 uF
Indoor Fan Motor , Speed (Hi/Mi/Lo)	890/810/730 r/min

Indoor Coil , Number of Rows	2
Indoor Coil , Tube pitch(a)x row pitch(b)	21x13.37 mm
Indoor Coil , Fin spacing	1.3 mm
Indoor Coil , Fin type (code)	Hydrophilic Aluminium
Indoor Coil , Tube Outside dia.and Type	Φ7,Innergroove Tube mm
Indoor Coil , Coil Length x Height x Width	355x336x26.74 mm
Indoor Coil , Number of Circuits	4
Indoor Air Flow (Hi/Mi/Lo)	450/390/340 m3/h
Indoor Noise Level (Hi/Mi/Lo)	53/48/46 dB(A)
Outdoor Condenser , Number of Rows	2
Outdoor Condenser , Tube pitch(a)x row pitch(b)	19.5x11.6 mm
Outdoor Condenser , Fin spacing	1.3 mm
Outdoor Condenser , Fin type (code)	UnHydrophilic Aluminium
Outdoor Condenser , Tube Outside dia.and Type	Φ5,Innergroove Tube mm
Outdoor Condenser , Coil Length x Height x Width	621x351x23.2 mm
Outdoor Condenser , Number of Circuits	2
Outdoor Side Noise Level (Hi)	59 dB(A)
Refrigerant Type	R22/0.54 Kg
Design Pressure	2.94/1.0 MPa
Plug Type	1.5x3/VDE
Control Type	Mechanical Control
Operation Temperature , Indoor(Cooling/Heating)	17～32/- ℃
Operation Temperature , Outdoor(Cooling/Heating)	18～52/- ℃
Application area (Cooling Standard)	16-23 m2
Dimension(WxDxH)	600x560x380 mm
Packing(WxDxH)	685x620x430 mm
Net Weight	36 Kg
Gross Weight	39 Kg
Container Loading 20'feet	135 Units
Container Loading 40'feet	285 Units
Container Loading 40'HQ	341 Units

Power Supply V,Ph,Hz	220-240V, 1Ph, 50Hz
Cooling (T1), Capacity	18000 BTU/h
Cooling (T1), Input	1940 W
Cooling (T1), Rated Current	8.4 A
Cooling (T1), EER	9.28 W/W
Cooling (T3), Capacity	15777 BTU/h
Cooling (T3), Input	2408 W
Cooling (T3), Rated Current	11.02 A
Cooling (T3), EER	6.55 W/W
Heating (T1), Capacity	/
Heating (T1), Input	/
Heating (T1), Rated Current	/
Heating (T1), COP	/
Moisture Removal	1.8 L/h
Rated Input Consumption	2900 W
Rated Current	13.5 A
Starting Current	48 A
Compressor , Model	PH310M2AS-4KTS2
Compressor , Type	ROTARY
Compressor , Brand	GMCC
Compressor , Capacity	19175 BTU/h
Compressor , Input	1755 W
Compressor , Rated Current(RLA)	8.30 A
Compressor , Locked rotor Amp(LRA)	49.0 A
Compressor , Thermal Protector	/
Compressor , Thermal Protector Position	INTERNAL
Compressor , Capacitor	50 uF
Compressor , Refrigerant oil/oil Charge	SUNISO 4GSD　or NM56EP 620 ml
Indoor Fan Motor , Model	YKTS-100-6-57
Indoor Fan Motor , Input	177 W
Indoor Fan Motor , Output	100 W
Indoor Fan Motor , Capacitor	6.0 uF
Indoor Fan Motor , Speed (Hi/Mi/Lo)	900/770/700 r/min

Indoor Coil , Number of Rows	3
Indoor Coil , Tube pitch(a)x row pitch(b)	21x13.37 mm
Indoor Coil , Fin spacing	1.3 mm
Indoor Coil , Fin type (code)	Hydrophilic Aluminium
Indoor Coil , Tube Outside dia.and Type	Φ7,Innergroove Tube mm
Indoor Coil , Coil Length x Height x Width	390x378x40.11 mm
Indoor Coil , Number of Circuits	4
Indoor Air Flow (Hi/Mi/Lo)	730/650/550 m3/h
Indoor Noise Level (Hi/Mi/Lo)	56/52/50 dB(A)
Outdoor Condenser , Number of Rows	2
Outdoor Condenser , Tube pitch(a)x row pitch(b)	19.5x11.6 mm
Outdoor Condenser , Fin spacing	1.2 mm
Outdoor Condenser , Fin type (code)	UnHydrophilic Aluminium
Outdoor Condenser , Tube Outside dia.and Type	Φ5,Innergroove Tube mm
Outdoor Condenser , Coil Length x Height x Width	688x390x23.2 mm
Outdoor Condenser , Number of Circuits	4
Outdoor Noise Level	62 dB(A)
Refrigerant Type	R22/0.67 Kg
Design Pressure	2.94/1.0 MPa
Plug Type	3x2.5/no-plug
Control Type	Mechanical Control
Operation Temperature , Indoor(Cooling/Heating)	17～32/- ℃
Operation Temperature , Outdoor(Cooling/Heating)	18～52/- ℃
Application area (Cooling Standard)	24-35 m2
Dimension(WxDxH)	660x680x428 mm
Packing(WxDxH)	746x815x515 mm
Net Weight	52 Kg
Gross Weight	57 Kg
Container Loading 20'feet	84 Units
Container Loading 40'feet	180 Units
Container Loading 40'HQ	225 Units

Power Supply V,Ph,Hz	220-240V, 1Ph, 50Hz
Cooling (T1), Capacity	24000 BTU/h
Cooling (T1), Input	2645 W
Cooling (T1), Rated Current	12.10 A
Cooling (T1), EER	2.66 W/W
Cooling (T3), Capacity	/
Cooling (T3), Input	/
Cooling (T3), Rated Current	/
Cooling (T3), EER	/
Heating (T1), Capacity	11000 BTU/h
Heating (T1), Input	3600 W
Heating (T1), Rated Current	15.7 A
Heating (T1), COP	0.89 W/W
Moisture Removal	2.2 L/h
Rated Input Consumption	3600 W
Rated Current	15.7 A
Starting Current	59.7 A
Compressor , Model	PH360G2C-4FTS
Compressor , Type	ROTARY
Compressor , Brand	GMCC
Compressor , Capacity	21803/21922 BTU/h
Compressor , Input	2015/2170 W
Compressor , Rated Current(RLA)	9.20/9.90 A
Locked rotor Amp(LRA)	59.7 A
Thermal Protector	/
Compressor , Thermal Protector Position	INTERNAL
Compressor , Capacitor	60 uF
Compressor , Refrigerant oil/oil Charge	SUNISO 4GSD ·700
Indoor Fan Motor , Model	YKTS-170-4-1-4
Indoor Fan Motor , Input	242 W
Indoor Fan Motor , Capacitor	6.5 uF
Indoor Fan Motor , Speed (Hi/Mi/Lo)	1260/1155/1080/980 r/min

Indoor Evaporator , Number of Rows	3
Indoor Evaporator , Tube pitch(a)x row pitch(b)	21x13.37 mm
Indoor Evaporator , Fin spacing	1.3 mm
Indoor Evaporator , Fin type (code)	Hydrophilic Aluminium
Indoor Evaporator , Tube Outside dia.and Type	Φ7,Innergroove Tube mm
Indoor Evaporator , Coil Length x Height x Width	390x378x40.11 mm
Indoor Evaporator , Number of Circuits	4
Indoor Side Air Flow (Hi/Mi/Lo)	805/730/660 m3/h
Indoor Side Noise Level (Hi/Mi/Lo)	58/56/55 dB(A)
Outdoor Condenser , Number of Rows	2
Outdoor Condenser , Tube pitch(a)x row pitch(b)	19.5x11.6 mm
Outdoor Condenser , Fin spacing	1.2 mm
Outdoor Condenser , Fin type (code)	UnHydrophilic Aluminium
Outdoor Condenser , Tube Outside dia.and Type	Φ5,Innergroove Tube mm
Outdoor Condenser , Coil Length x Height x Width	680x406x23.2 mm
Outdoor Condenser , Number of Circuits	4
Outdoor Side Noise Level	63 dB(A)
Refrigerant Type	R22/1.0 Kg
Design Pressure	2.94/1.0 MPa
Plug Type	3x2.5/no-plug
Control Type	Mechanical Control
Operation temperature , Indoor(Cooling/Heating)	17～35/0～27 ℃
Operation temperature , Outdoor(Cooling/Heating)	18～52/-5～24 ℃
Application area (Cooling Standard)	28-41 m2
Dimension(WxDxH)	660x680x428 mm
Packing(WxDxH)	746x815x515 mm
Net Weight	56.5 Kg
Gross Weight	60.8 Kg
Container Loading 20'feet	88 Units
Container Loading 40'feet	176 Units
Container Loading 40'HQ	220 Units

Artcool R410A

Rated Capacity, Cooling	12000 BTU
Rated Capacity, Heating	12400 BTU
Rated Running Current, Cooling	6.5 A
Rated Running Current, Heating	6 A
Max. Input Power	1700 W
Max. Input Current	8.6 A
EER Cooling	3.02 W/W
COP Heating	3.36 W/W
Power Supply Source V/Hz	220-240V~/1/50Hz
Refrigerant	R410A
Refrigerant Charged	720 g
Max. Discharge Pressure	4.15 Mpa
Max. Suction Pressure	1.15 Mpa
Air Flow Volume	600 m3/h
Indoor Unit Noise Power	39 dB（A)
Outdoor Unit Noise Power	53 dB（A)
Indoor Unit Weight （Net)	10 Kg

Outdoor Unit Weight (Net)	28 Kg
Indoor Evaporator Bend	3
Indoor Evaporator Row	2
Indoor Evaporator Pipe Diameter	7*0.24 mm
Indoor Fan Motor	YYK18-4B
Indoor Net Dimension	800300198 mm
Indoor Packing Dimension	850370280 mm
Liquid Valve	Φ6.35*0.5 mm
Gas Valve	Φ9.52×0.6 mm
Outdoor Compressor Brand	LANDA
Outdoor Compressor Model	QXA-B15E
Outdoor Fan Motor	YDK25-6
Outdoor Condenser Pipe Diameter	7*0.24 mm
Outdoor Condenser Row	1
Outdoor Net Dimension	720540260 mm
Outdoor Packing Dimension	850620370 mm
Container Loading 40HC	240 Units

Rated Capacity, cooling	18000 BTU
Rated Capacity, heating	18500 BTU
Rated Running Current, cooling	9.5 A
Rated Running Current, heating	7 A
Max. Input Power	3220 W
Max. Input Current	14 A
EER Cooling	3.07 W/W
COP Heating	3.16 W/W
Power Supply Source	220-240V~/1/50Hz
Refrigerant	R410A
Refrigerant Charged	1200 g
Max. Discharge Pressure	4.15 Mpa
Max. Suction Pressure	1.15 Mpa
Air Flow Volume	1050 m3/h
Indoor unit Noise Power	43 dB（A)
Outdoor unit Noise Power	55 dB（A)
Indoor unit Weight （Net)	14 Kg

Outdoor unit Weight (Net)	37 Kg
Indoor evaporator Bend	3
Indoor evaporator row	2
Indoor evaporator pipe diameter	7*0.24 mm
Indoor Fan Motor	YYK30-4
Indoor Net Dimension	970315235 mm
Indoor Packing Dimension	1025385305 mm
Liquid Valve	Φ6.35*0.5 mm
Gas Valve	Φ12.7×0.7 mm
Outdoor Compressor Brand	RECHI
Outdoor Compressor Model	50A433VM
Outdoor Fan Motor	YDK31-6A
Outdoor Condenser Pipe Diameter	9.52×0.27 mm
Outdoor Condenser Row	1
Outdoor Net Dimension	802535298 mm
Outdoor Packing Dimension	907382600 mm
Container Loading 40HC	190 Units

Rated Capacity, Cooling	24000 BTU
Rated Capacity, Heating	24300 BTU
Rated Running Current, Cooling	11 A
Rated Running Current, Heating	11 A
Max. Input Power	3200 W
Max. Input Current	18 A
EER Cooling	3.11 W/W
COP Heating	3.29 W/W
Power Supply Source V/Hz	220-240V~/1/50Hz
Refrigerant	R410A
Refrigerant Charged	1650 g
Max. Discharge Pressure	4.15 Mpa
Max. Suction Pressure	1.15 Mpa
Air Flow Volume	1200 m3/h
Indoor Unit Noise Power	47 dB（A)
Outdoor Unit Noise Power	56 dB（A)
Indoor Unit Weight （Net)	16 Kg

Outdoor Unit Weight (Net)	54 Kg
Indoor Evaporator Bend	3
Indoor Evaporator Row	2
Indoor Evaporator Pipe Diameter	7*0.24 mm
Indoor Fan Motor	YYK50-4
Indoor Net Dimension	1100330235 mm
Indoor Packing Dimension	1160400305 mm
Liquid Valve	Φ6.35*0.5 mm
Gas Valve	Φ15.88×0.75 mm
Outdoor Compressor Brand	Highly
Outdoor Compressor Model	ASH286
Outdoor Fan Motor	YDK86-6B
Outdoor Condenser Pipe Diameter	7×0.24 mm
Outdoor Condenser Row	2
Outdoor Net Dimension	900343681 mm
Outdoor Packing Dimension	1020430770 mm
Container Loading 40HC	140 Units

Rated Capacity, Cooling	30000 BTU
Rated Capacity, Heating	36400 BTU
Rated Running Current, Cooling	12.5 A
Rated Running Current, Heating	11.2 A
Max. Input Power	3800 W
Max. Input Current	22 A
EER Cooling	3.15 W/W
COP Heating	3.33 W/W
Power Supply Source	220-240V~/1/50Hz
Refrigerant	R410A
Refrigerant Charged	2100 g
Max. Discharge Pressure	4.15 Mpa
Max. Suction Pressure	1.15 Mpa
Air Flow Volume	1200 m3/h
Indoor unit Noise Power	48 dB（A)
Outdoor Unit Noise Power	58 dB（A)
Indoor Unit Weight （Net)	16 Kg

Outdoor Unit Weight (Net)	57 Kg
Indoor Evaporator Bend	3
Indoor Evaporator Row	2
Indoor Evaporator Pipe Diameter	7*0.24 mm
Indoor Fan Motor	YYK50-4
Indoor Net Dimension	1160400305 mm
Indoor Packing Dimension	1155397312 mm
Liquid Valve	Φ6.35*0.5 mm
Gas Valve	Φ15.88×0.75 mm
Outdoor Compressor Brand	GMCC
Outdoor Compressor Model	PA301
Outdoor Fan Motor	YDK86-6B
Outdoor Condenser Pipe Diameter	7×0.24 mm
Outdoor Condenser Row	2
Outdoor Net Dimension	900343681 mm
Outdoor Packing Dimension	1020430770 mm
Container Loading 40HC	140 Units

SUPER

Rated Capacity, Cooling	12000 BTU
Rated Capacity, Heating	12400 BTU
Rated Running Current, Cooling	6.5 A
Rated Running Current, Heating	6 A
Max. Input Power	1700 W
Max. Input Current	8.6 A
EER Cooling	8.82 W/W
COP Heating	10.33 W/W
Power Supply Source	220～240V-50Hz
Refrigerant	R410A
Refrigerant Charged	600 g
Max. Discharge Pressure	4.15 Mpa
Max. Suction Pressure	1.15 Mpa
Air Flow Volume	600 m3/h
Indoor Unit Noise Power	43 dB（A)
Outdoor Unit Noise Power	52 dB（A)
Indoor Unit Weight （Net)	8 Kg

Outdoor Unit Weight (Net)	25 Kg
Indoor Evaporator Bend	3
Indoor Evaporator Row	2
Indoor Evaporator Pipe Diameter	7 mm
Indoor Fan Motor	YYK18-4E
Indoor Net Dimension	750285200 mm
Indoor Packing Dimension	820347277 mm
Liquid Valve	Dg04 mm
Gas Valve	Dg08-I mm
Outdoor Compressor Brand	GMCC
Outdoor Compressor Model	ASM130
Outdoor Fan Motor	YDK24-6A
Outdoor Condenser Pipe Diameter	7 mm
Outdoor Condenser Row	1
Outdoor Net Dimension	660×500×240 mm
Outdoor Packing Dimension	780×570×345 mm
Container Loading 40HC	290 Units

Rated Capacity, Cooling	18000 BTU
Rated Capacity, Heating	18500 BTU
Rated Running Current, Cooling	9.5 A
Rated Running Current, Heating	7 A
Max. Input Power	3220 W
Max. Input Current	14 A
EER Cooling	8.65 W/W
COP Heating	11.71 W/W
Power Supply Source	220～240V-50Hz
Refrigerant	R410A
Refrigerant Charged	980 g
Max. Discharge Pressure	4.15 Mpa
Max. Suction Pressure	1.15 Mpa
Air Flow Volume	1050 m3/h
Indoor Unit Noise Power	43 dB（A)
Outdoor Unit Noise Power	53 dB（A)
Indoor Unit Weight （Net)	11 Kg

Outdoor Unit Weight (Net)	35 Kg
Indoor Evaporator Bend	3
Indoor Evaporator Row	2
Indoor Evaporator Pipe Diameter	7 mm
Indoor Fan Motor	YYK25-4D
Indoor Net Dimension	900310225 mm
Indoor Packing Dimension	950380290 mm
Liquid Valve	Dg4 mm
Gas Valve	Dg8 mm
Outdoor Compressor Brand	HIGHLY
Outdoor Compressor Model	ASL185
Outdoor Fan Motor	YDK31-6A
Outdoor Condenser Pipe Diameter	7.94 mm
Outdoor Condenser Row	1
Outdoor Net Dimension	800545315 mm
Outdoor Packing Dimension	920400620 mm
Container Loading 40HC	195 Units

Rated Capacity, Cooling	24000 BTU
Rated Capacity, Heating	24300 BTU
Rated Running Current, Cooling	11 A
Rated Running Current, Heating	11 A
Max. Input Power	3200 W
Max. Input Current	18 A
EER Cooling	10.30 W/W
COP Heating	10.43 W/W
Power Supply Source	220～240V-50Hz
Refrigerant	R410A
Refrigerant Charged	1590 g
Max. Discharge Pressure	4.15 Mpa
Max. Suction Pressure	1.15 Mpa
Air Flow Volume	1200 m3/h
Indoor unit Noise Power	47 dB（A)
Outdoor Unit Noise Power	56 dB（A)
Indoor Unit Weight （Net)	14 Kg

Outdoor Unit Weight (Net)	49.5 Kg
Indoor Evaporator Bend	3
Indoor Evaporator Row	2
Indoor Evaporator Pipe Diameter	7 mm
Indoor Fan Motor	YYK50-4
Indoor Net Dimension	1082330233 mm
Indoor Packing Dimension	1155397312 mm
Liquid Valve	Dg4 mm
Gas Valve	Dg13-I mm
Outdoor Compressor Brand	GMCC
Outdoor Compressor Model	ASG240
Outdoor Fan Motor	YDK69-6A
Outdoor Condenser Pipe Diameter	7.94 mm
Outdoor Condenser Row	2
Outdoor Net Dimension	825655310 mm
Outdoor Packing Dimension	945725435 mm
Container Loading 40HC	150 Units

Rated Capacity, Cooling	30000 BTU
Rated Capacity, Heating	30400 BTU
Rated Running Current, Cooling	12.5 A
Rated Running Current, Heating	11.2 A
Max. Input Power	3800 W
Max. Input Current	22 A
EER Cooling	11.11 W/W
COP Heating	12.41 W/W
Power Supply Source V/Hz	220～240V-50Hz
Refrigerant	R410A
Refrigerant Charged	2100 g
Max. Discharge Pressure	4.15 Mpa
Max. Suction Pressure	1.15 Mpa
Air Flow Volume	1200 m3/h
Indoor unit Noise Power	49 dB（A)
Outdoor Unit Noise Power	58 dB（A)
Indoor Unit Weight （Net)	16 Kg

Outdoor Unit Weight (Net)	57 Kg
Indoor Evaporator Bend	3
Indoor Evaporator Row	2
Indoor Evaporator Pipe Diameter	7 mm
Indoor Fan Motor	YYK50-4
Indoor Net Dimension	1082330233 mm
Indoor Packing Dimension	1155397312 mm
Liquid Valve	Dg13-I mm
Gas Valve	Dg04 mm
Outdoor Compressor Brand	GMCC
Outdoor Compressor Model	PA301
Outdoor Fan Motor	YDK86-6B
Outdoor Condenser Pipe Diameter	7 mm
Outdoor Condenser Row	2
Outdoor Net Dimension	900700350 mm
Outdoor Packing Dimension	1020430770 mm
Container Loading 40HC	140 Units

Split Units Products

Features

Features

Features

Features

Features

Features

Features

Features

Features

Features

Features

Features

Features

Features
